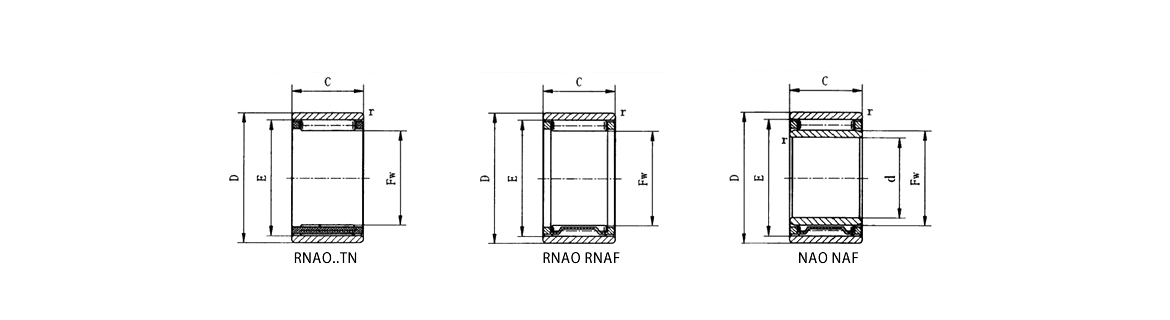

RNAO..TN | RNAO RNAF | NAO NAF

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)						Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	E	D	C	rmin	Allowable offset (s)	C Dynamic	C o Static	Limiting Speed (rpm)
		RNAO 5X10X8TN	3		5	8	10	8	0.15		2.11	1.75	32000
		RNAO6X13X8TN	6		6	9	13	8	0.3		2.13	1.82	29600
		RNAO 7X14X8	6		7	10	14	8	0.3		2.14	1.88	27200
		RNAO 8X15X10	8		8	11	15	10	0.3		3.2	3.28	25600
		RNAO 8X16X20ZW	17		8	12	16	20	0.3		6.36	6.68	25600
NAO 6X17X10	14	RNAO 10X17X10	10	6	10	13	17	10	0.3	0.5	3.64	4.08	22400
NAO 7X20X12	22	RNAO 10X20X12	18	7	10	16	20	12	0.3		5.68	4.76	22400
		RNAO 12X19X13.5	15		12	15	19	13.5	0.3		4.8	6.16	20800
NAO 9X22X12	24	RNAO 12X22X12	19	9	12	18	22	12	0.3	0.5	6,92	6.4	20800
NAO 10X22X13	26	RNAO 14X22X13	18	10	14	18	22	13	0.3		6.64	8.08	19200
NAO10X22X20ZW	39	RNAO 14X22X20ZW	27	10	14	18	22	20	0.3		9.44	12.8	19200
NAO 10X26X12	36	RNAO 14X26X12	29	10	14	20	26	12	0.3		7.48	7.32	19200
		RNAO 15X23X13	20		15	19	23	13	0.3		6.6	8.16	18400
		RNAO 15X23X20ZW	31		15	19	23	20	0.3		9.36	12.88	18400
NAO 12X24X13	30	RNAO 16X24X13	21	12	16	20	24	13	0.3		7.24	9.44	18400
NAO 12X24X20ZW	44	RNAO 16X24X20ZW	32	12	16	20	24	20	0.3		10.32	14.8	18400
NAO 12X28X12	40	RNAO 16X28X12	32	12	16	22	28	12	0.3	0.5	9.36	10	18400
		RNAO 17X25X13	22		17	21	25	13	0.3		7.52	10.08	17600
		RNAO 17X25X20ZW	34		17	21	25	20	0.3		10.24	14.88	17600
		RNAO 17X25X26ZW	44		17	21	25	26	0.3		12.88	20.16	17600
		RNAO 18X26X13	22		18	22	26	13	0.3		7.12	9.52	16800
		RNAO 18X26X20ZW	33		18	22	26	20	0.3		10.16	15.04	16800
		RNAO 18X30X12	35		18	24	30	12	0.3		9.84	11.04	16800
		RNAO 18X30X24ZW	69		18	24	30	24	0.3		16.88	22.16	16800
NAO 15X28X13	29	RNAO 20X28X13	25	15	20	24	28	13	0.3	0.5	8	11.44	16000
NAO 15X28X26ZW	75	RNAO 20X28X26ZW	50	15	20	24	28	26	0.3		13.68	22.88	16000
NAO 15X32X12	50	RNAO 20X32X12	38	15	20	26	32	12	0.3	0.5	10.32	12.08	16000
		RNAO 20X32X24ZW	80		20	26	32	24	0.3		17.68	24	16000
NAO 17X30X13	42	RNAO 22X30X13	27	17	22	26	30	13	0.3		8.16	12.16	14400
NAO 17X30X26ZW	81	RNAO 22X30X26ZW	54	17	22	26	30	26	0.3		14	24.4	14400

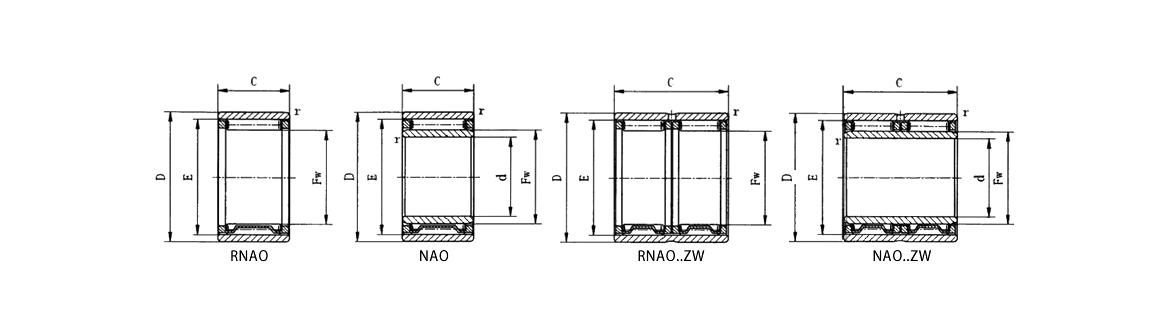

RNAO | NAO | RNAO..ZW | NAO..ZW

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)						Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	E	D	C	rmin	Allowable offset (s)	C Dynamic	Co Static	Limiting Speed (rpm)
NAO 17X35X16	78	RNAO 22X35X16	59	17	22	29	35	16	0.3	0.5	14.96	18.16	14400
NAO 17X35X32ZW	148	RNAO 22X35X32ZW	118	17	22	29	35	32	0.3		25.6	36.4	14400
NAO 20X35X17	76	RNAO 25X35X17	53	20	25	29	35	17	0.3	0.5	11.36	19.2	12800
NAO 20X35X26ZW	112	RNAO 25X35X26ZW	76	20	25	29	35	26	0.3		14.72	26.8	12800
NAO 20X37X16	82	RNAO 25X37X16	60	20	25	32	37	16	0.3	0.5	15.6	19.76	12800
NAO 20X37X32ZW	155	RNAO 25X37X32ZW	119	20	25	32	37	32	0.3		26.8	39.6	12800
		RNAO 26X39X13	60		26	30	39	13	0.3		9.44	15,36	12000
		RNAO 28X40X16	61		28	35	40	16	0.3		16.96	22,72	11200
		RNAO 28X40X32ZW	122		28	35	40	32	0.3		29.2	45.6	11200
NAO 25X40X17	88	RNAO 30X40X17	60	25	30	35	40	17	0.3	0.8	15.52	26	10400
NAO25X40X26ZW	130	RNAO 30X40X26ZW	94	25	30	35	40	26	0.3		20.16	36.8	10400
NAO25X42X16	86	RNAO 30X42X16	69	25	30	37	42	16	0.3	0.8	17.52	24.4	10400
NAO25X42X32ZW	190	RNAO 30X42X32ZW	137	25	30	37	42	32	0.3	0.8	30	48.4	10400
NAO 29X42X13	62	RNAO 32X42X13	49	29	32	37	42	13	0.3		11.6	18.4	10400
NAO30X45X13	77	RNAO 35X45X13	53	30	35	40	45	13	0.3		12.16	20.08	8800
NAO 30X45X17	102	RNAO 35X45X17	69	30	35	40	45	17	0.3	0.8	16	28.8	8800
NAO 30X45X26ZW	157	RNAO 35X45X26ZW	91	30	35	40	45	26	0.3	0.8	20.88	40	8800
NAO30X47X16	109	RNAO 35X47X16	78	30	35	42	47	16	0.3	0.8	19.28	28,8	8800
NAO30X47X18	119	RNAO35X47X18	89	30	35	42	47	18	0.3	0.8	19.76	29.6	8800
NAO 30X47X32ZW	205	RNAO 35X47X32ZW	156	30	35	42	47	32	0.3		33.2	57.2	8800
NAO 33X47X13	85	RNAO 37X47X13	56	33	37	42	47	13	0.3		12.72	21.68	8800
NAO 30X52X18	177	RNAO 37X52X18	125	30	37	44	52	18	0.3		21.04	32.8	8800
NAO35X50X17	113	RNAO 40X50X17	74	35	40	45	50	17	0.3	0.8	17.44	33.2	8000
NAO 35X50X34ZW	225	RNAO 40X50X34ZW	152	35	40	45	50	34	0.3		30	66.4	8000
NAO 35X55X20	190	RNAO 40X55X20	145	35	40	47	55	20	0.3	0.8	24.8	41.2	8000
NAO 35X55X40ZW	360	RNAO 40X55X40ZW	275	35	40	48	55	40	0.3		45.2	81.6	8000
NAO 40X55X17	127	RNAO 45X55X17	83	40	45	50	55	17	0.3	0.8	17.84	35.6	7200
NAO 40X55X34ZW	250	RNAO 45X55X34ZW	165	40	45	50	55	34	0.3		30.8	71.6	7200
NAO 40X62X20	230	RNAO 45X62X20	175	40	45	53	62	20	0.3		28.8	47.2	7200
NAO 40X62X40ZW	385	RNAO 45X62X40ZW	377	40	45	53	62	40	0.3		49.2	94.4	7200
NAO 45X62X20	192	RNAO 50X62X20	140	45	50	55	62	20	0.3		22.32	49.6	6400
NAO 45X62X40ZW	385	RNAO50X62X40ZW	295	45	50	55	62	40	0.3		38.4	99.2	6400
NAO 40X65X20	279	RNAO50X65X20	168	40	50	58	65	20	0.3		30.8	54	6400
		RNAO 50X65X40ZW	355		50	58	65	40	0.6		53.2	108	6400
NAO50X68X20	230	RNAO55X68X20	166	50	55	60	68	20	0.6	1	23,04	53.2	6000
		RNAO 55X68X25	200		55	63	68	25	0,6		40.4	78	6000
NAO50X68X40ZW	440	RNAO55X68X40ZW	310	50	55	60	68	40	0.6		39.6	106.4	6000
NAO45X72X20	335	RNAO 55X72X20	216	45	55	63	72	20	0.6		31.2	56	6000
NAO 45X72X40ZW	660	RNAO55X72X40ZW	425	45	55	63	72	40	0.6		53.2	112	6000
		RNAO 60X75X46ZW	461		60	68	75	46	1		60.8	136	5200
NAO 50X78X20	410	RNAO 60X78X20	255	50	60	68	78	20	1		32	60	5200
NAO 50X78X40ZW	755	RNAO 60X78X40ZW	500	50	60	68	78	40	1		55.2	120	5200
NAO 55X85X30	680	RNAO 65X85X30	464	55	65	73	85	30	1		48.8	105.6	4800
NAO55X85X60ZW	1350	RNAO 65X85X60ZW	951	55	65	73	85	60	1		83.2	210.4	4800
NAO 60X90X30	720	RNAO70X90X30	499	60	70	78	90	30	1		52,4	119.2	4400
NAO 60X90X60ZW	1450	RNAO 70X90X60ZW	1000	60	70	78	90	60	1		89.6	237.6	4400
NAO65X95X30	770	RNAO75X95X30	520	65	75	83	95	30	1		54	125.6	4400
NAO 65X95X60ZW	1540	RNAO 75X95X60ZW	1040	65	75	83	95	60	1		92	252	4400
NAO 70X95X30	675	RNAO 80X95X30	405	70	80	86	95	30	1		45.6	127.2	4000
NAO 70X95X56ZW	1260	RNAO80X95X56ZW	755	70	80	88	95	56	1		84	227.2	4000
NAO 70X100X30	850	RNAO 80X100X30	580	70	80	88	100	30	1	1	55.2	132.8	4000
NAO 70X100X60ZW	1700	RNAO80X100X60ZW	1100	70	80	88	100	60	1		95.2	268	4000
NAO 75X105X25	700	RNAO 85X105X25	459	75	85	93	105	25	1		49.2	116.8	3760
NAO 75X105X30	880	RNAO 85X105X30	585	75	85	93	105	30	1		56.8	140	3760
		RNAO 90X105X26	373		90	98	105	26	1		51.2	125.6	3520
NAO 80X110X30	920	RNAO 90X110X30	610	80	90	98	110	30	1	1	58	147.2	3520
NAO 85X115X30	960	RNAO95X115X30	640	85	95	103	115	30	1		59.2	154.4	3360
NAO 90X120X30	1040	RNAO 100X120X30	694	90	100	108	120	30	1	1	60.8	160.8	3200
