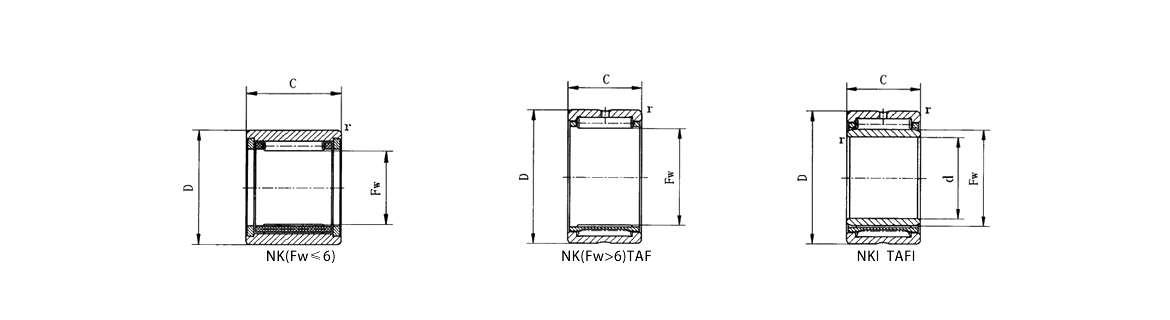

NK(Fw≤6) | NK(Fw>6)TAF | NKI TAFI

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)					Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	D	C	rmin	Allowable offset (s)	C Dynamic	C o Static	Limiting Speed (rpm)
		NK5/10TN	3.1		5	10	10	0.15		2.11	1.75	32000
		NK5/12TN	3.7		5	10	12	0.15		2.18	1.8	32000
		NK6/10TN	4.7		6	12	10	0.15		2.13	1.82	29600
		NK6/12TN	5.7		6	12	12	0.15		2.72	2.52	29600
		NK7/10	6.9		7	14	10	0.3		2.14	1,88	27200
		NK7/12	8.2		7	14	12	0.3		2.72	2.56	27200
NKI5/12	12	NK8/12	8.7	5	8	15	12	0.3	1.5	3.2	3.28	25600
		NK8/16	12		8	15	16	0.3		3.88	4.16	25600
NKI6/12	13	NK9/12	10	6	9	16	12	0.3	1.5	3.64	4	24000
NKI6/16	17	NK9/16	13	6	9	16	16	0.3	2	4.4	5.12	24000
NKI7/12	14	NK10/12	10	7	10	17	12	0.3	1.5	3.64	4.08	22400
NKI7/16	18	NK10/16	13	7	10	17	16	0.3	2	4.36	5.16	22400
NKI9/12	18	NK12/12	13	9	12	19	12	0.3	1.5	4	4.88	20800
NKI9/16	22	NK12/16	16	9	12	19	16	0.3	2	7.2	8.8	20800
NKI10/16	30	NK14/16	21	10	14	22	16	0.3	0.5	8.24	9.2	19200
NKI10/20	38	NK14/20	26	10	14	22	20	0.3	0.5	10.4	12.48	19200
		NK15/16	22		15	23	16	0.3		8.72	10.16	18400
		NK15/20	27		15	23	20	0.3		11.04	13.76	18400
NKI12/16	33	NK16/16	22	12	16	24	16	0.3	0.5	9.76	11.92	18400
NKI12/20	42	NK16/20	28	12	16	24	20	0.3	0.5	11.68	15.04	18400
		NK17/16	24		17	25	16	0.3		9.68	12	17600
		NK17/20	30		17	25	20	0.3		12.32	16.32	17600
		NK18/16	25		18	26	16	0.3		10.16	12.96	16800
		NK18/20	31		18	26	20	0.3		12.88	17.6	16800
NKI15/16	39	NK19/16	26	15	19	27	16	0.3	0.5	10.64	13.92	16800
NKI15/20	45	NK19/20	32	15	19	27	20	0.3	0.5	12.8	17.76	16800
		NK20/16	27		20	28	16	0.3		10.56	14	16000
		NK20/20	34		20	28	20	0.3		13.36	19.04	16000

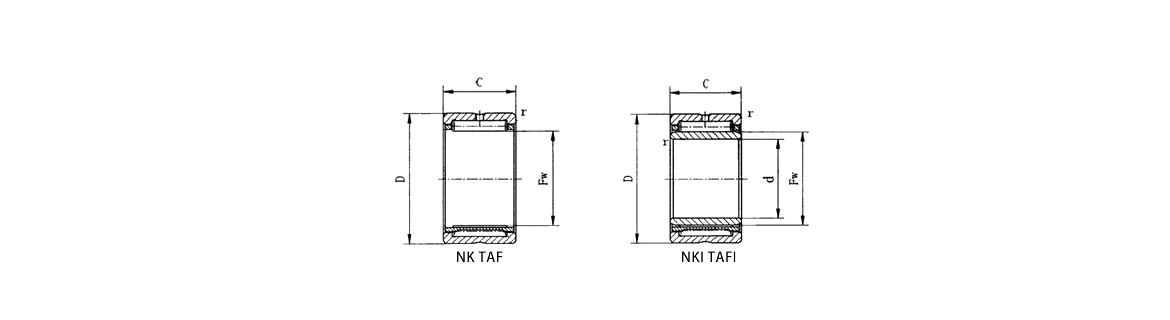

NK TAF | NKI TAFI

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)					Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	D	C	rmin	Allowable offset (s)	C Dynamic	C o Static	Limiting Speed (rpm)
NKI17/16	42	NK21/16	28	17	21	29	16	0.3	0.5	11	15	15200
NKI17/20	53	NK21/20	35	17	21	29	20	0.3	0.5	14.64	21.68	15200
		NK22/16	34		22	30	16	0.3		11.36	15.92	14400
		NK22/20	37		22	30	20	0.3		14,4	21.6	14400
NKI20/16	49	NK24/16	32	20	24	32	16	0.3	0.5	12.16	17.84	13600
NKI20/20	61	NK24/20	40	20	24	32	20	0.3	0.5	14.88	23.04	13600
		NK25/16	33		25	33	16	0.3		12.08	17.92	12800
		NK25/20	42		25	33	20	0.3		15.36	24.4	12800
NKI22/16	46	NK26/16	34	22	26	34	16	0.3	0.5	12.48	18.88	12000
NKI22/20	64	NK26/20	42	22	26	34	20	0.3	0.5	15.28	24.4	12000
		NK28/20	52		28	37	20	0.3		17.84	27.2	11200
		NK28/30	82		28	37	30	0.3		21.36	38.4	11200
NKI25/20	79	NK29/20	54	25	29	38	20	0.3	1	17.76	27.2	11200
NKI25/30	123	NK29/30	84	25	29	38	30	0.3	1.5	22	40.4	11200
		NK30/20	65		30	40	20	0.3		17.68	27.2	10400
		NK30/30	98		30	40	30	0.3		26.4	45.6	10400
NKI28/20	96	NK32/20	68	28	32	42	20	0.3	1	18.8	30	10400
NKI28/30	146	NK32/30	102	28	32	42	30	0.3	1.5	27.2	48.4	10400
NKI30/20	112	NK35/20	74	30	35	45	20	0.3	0.5	19.84	33.2	8800
NKI30/30	171	NK35/30	112	30	35	45	30	0.3	1	28.8	53.2	8800
NKI32/20	117	NK37/20	77	32	37	47	20	0.3	0.5	20.24	34.8	8800
NKI32/30	170	NK37/30	107	32	37	47	30	0.3	1	29.2	55.6	8800
		NK38/20	79		38	48	20	0.3		20.72	36	8800
		NK38/30	107		38	48	30	0.3		30	58.4	8800
NKI35/20	130	NK40/20	83	35	40	50	20	0.3	0.5	21.12	37.6	8000
NKI35/30	193	NK40/30	125	35	40	50	30	0.3	1	30.8	60.8	8000
		NK42/20	86		42	52	20	0.3		21.52	39.2	7600
		NK42/30	130		42	52	30	0.3		31.2	63.2	7600
NKI38/20	134	NK43/20	86	38	43	53	20	0.3	0.5	22	40.8	7600
NKI38/30	207	NK43/30	133	38	43	53	30	0.3	1	32	65.6	7600
NKI40/20	143	NK45/20	92	40	45	55	20	0.3	0.5	22.4	42	7200
NKI40/30	216	NK45/30	139	40	45	55	30	0.3	1	32.8	68.4	7200
NKI42/20	148	NK47/20	95	42	47	57	20	0.3	0.5	23	44.4	6800
NK142/30	222	NK47/30	142	42	47	57	30	0.3	1	34	73.2	6800
NK145/25	229	NK50/25	158	45	50	62	25	0.6	1.5	30.8	59.6	6400
NK145/35	322	NK50/35	221	45	50	62	35	0.6	2	40.8	84.8	6400
NKI50/25	271	NK55/25	193	50	55	68	25	0.6	1.5	32.8	65.6	6000
NKI50/35	379	NK55/35	267	50	55	68	35	0.6	2	43.2	94.4	6000
NKI55/25	271	NK60/25	185	55	60	72	25	0.6	1.5	32.8	68	5200
NKI55/35	379	NK60/35	258	55	60	72	35	0.6	2	45.6	104	5200
		NK65/25	221		65	78	25	0.6		36	78.4	4800
		NK65/35	310		65	78	35	0.6		48	113.6	4800
NKI60/25	393	NK68/25	241	60	68	82	25	0.6	1	35.6	71.2	4800
NKI60/35	551	NK68/35	338	60	68	82	35	0.6	1	50.4	111.2	4800
		NK70/25	275		70	85	25	0.6		36	73.2	4400
		NK70/35	386		70	85	35	0.6		51.2	115.2	4400
NKI65/25	466	NK73/25	302	65	73	90	25	1	1	43.2	80	4400
NKI65/35	660	NK73/35	428	65	73	90	35	1	1	61.2	124.8	4400
		NK75/25	315		75	92	25	1		44	83.2	4400
		NK75/35	492		75	92	35	1		62.4	129.6	4400
NKI70/25	525	NK80/25	301	70	80	95	25	1	0.8	45.6	95.2	4000
NKI70/35	738	NK80/35	425	70	80	95	35	1	0.8	63.6	147.2	4000

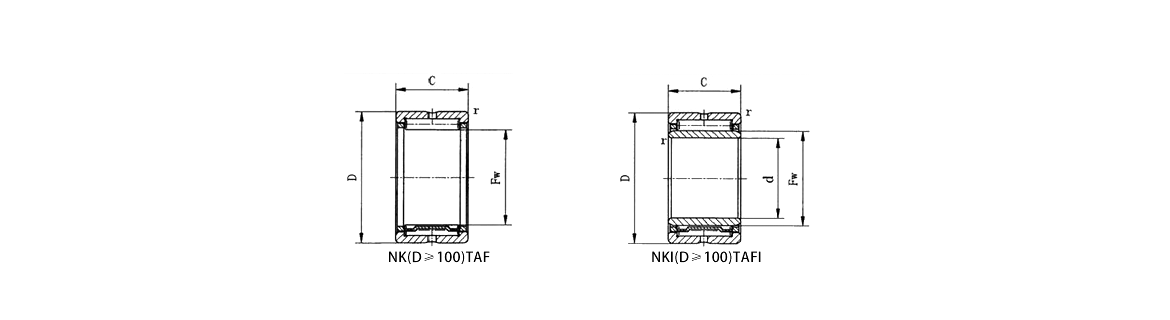

NK(D≥100)TAF | NKI(D≥100)TAFI

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)					Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	D	C	rmin	Allowable offset (s)	C Dynamic	C o Static	Limiting Speed (rpm)
NKI75/25	642	NK85/25	404	75	85	105	25	1	1	56.4	98.4	3760
NKI75/35	853	NK85/35	517	75	85	105	35	1	1	80	154.4	3760
NKI80/25	680	NK90/25	426	80	90	110	25	1	1	57.2	102.4	3520
NKI80/35	959	NK90/35	604	80	90	110	35	1	1	83.2	166.4	3520
NKI85/26	743	NK95/26	490	85	95	115	26	1	1.5	59.6	109.6	3360
NKI85/36	1050	NK95/36	652	85	95	115	36	1	1.5	86.4	178.4	3360
NKI90/26	781	NK100/26	487	90	100	120	26	1	1.5	58,8	109.6	3200
NKI90/36	1090	NK100/36	679	90	100	120	36	1	1.5	85.6	178.4	3200
NKI95/26	819	NK105/26	506	95	105	125	26	1	1.5	61.2	117.6	3040
NKI95/36	1150	NK105/36	713	95	105	125	36	1	1.5	88.8	190.4	3040
NKI100/30	990	NK110/30	612	100	110	130	30	1.1	1.5	78	163.2	2880
NKI100/40	1340	NK110/40	830	100	110	130	40	1.1	2	103.2	233,6	2880
NKI110/40	1490	NK120/40	910	110	120	140	40	1.1	1	90.4	214.4	2640
NKI120/40	1570	NK130/40	980	120	130	150	40	1.1		92.8	226.4	2480
NKI130/32	1900	NK145/32	1120	130	145	170	32	1.5		88.8	190.4	2240
NKI130/42	2540	NK145/42	1490	130	145	170	42	1.5		122.4	288	2240
NKI140/32	2040	NK155/32	1200	140	155	180	32	1.5		91.2	201.6	2080
NKI140/42	2690	NK155/42	1590	140	155	180	42	1.5		124.8	304	2080
NKI150/32	2320	NK165/32	1420	150	165	190	32	1.5		93.6	212	1920
NKI150/42	2840	NK165/42	1660	150	165	190	42	1.5		128	320	1920

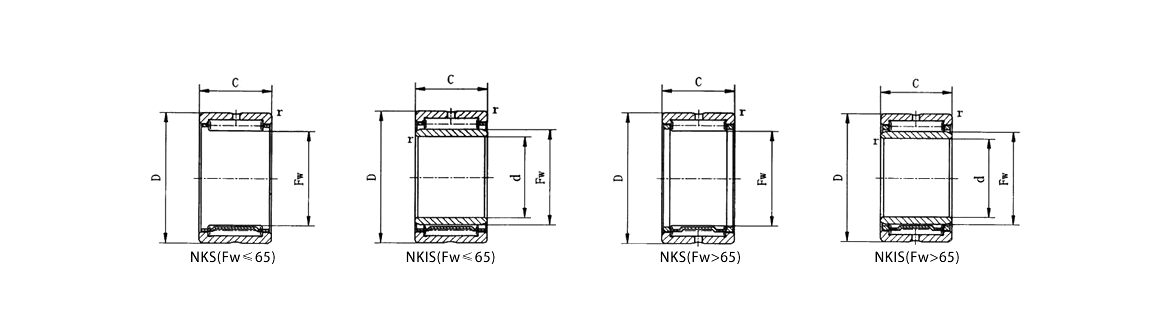

NKS(Fw≤65) | NKIS(Fw≤65) | NKS(Fw>65) | NKIS(Fw>65)

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)					Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	D	C	rmin	Allowable offset (s)	C Dynamic	C o Static	Limiting Speed (rpm)
		NKS8	11		8	16	13	0.3		4	3.76	25600
NKIS6	19.9	NKS10	15	6	10	19	13	0.3		4.64	4.8	23200
NKIS7	34.6	NKS12	23	7	12	22	16	0.6		7.68	8.32	20800
NKIS8	47.1	NKS14	29	8	14	25	16	0.6		11.52	11.04	19200
NKIS9	41.4	NKS15	30	9	15	26	16	0.6		11.52	11.2	18400
NKIS10	54	NKS16	35	10	16	28	16	0.6		12.56	12.64	17600
NKIS12	60	NKS18	37.9	12	18	30	16	0.6		13.44	14.16	16800
		NKS20	48.7		20	28	20	0.3		18.4	20	16000
NKIS15	92	NKS22	61.5	15	22	35	20	0.3		19.6	22.4	14400
NKIS17	98	NKS24	65.5	17	24	37	20	0.6	0.5	20.8	24.8	13600
		NKS25	68.1		25	38	20	0.6		22	26.8	13600
NKIS20	129	NKS28	83.6	20	28	42	20	0.6	0.5	22.8	29.2	12000
		NKS30	104		30	45	22	0.6		25.6	32	11200
NKIS25	162	NKS32	110	25	32	47	22	0.6	1	26.8	34.8	10400
		NKS35	118		35	50	22	0.6		28	37.6	9600
NKIS30	184	NKS37	123	30	37	52	22	0.6	1	29.2	40	9600
		NKS40	129		40	55	22	0.6		30.4	43.2	8800
NKIS35	220	NKS43	139	35	43	58	22	0.6	0.5	31.2	45.6	8000
		NKS45	145		45	60	22	0.6		32.4	48	8000
NKIS40	281	NKS50	157	40	50	65	22	1	0.5	34	53.6	7200
NKIS45	336	NKS55	221	45	55	72	22	1	0.5	36	59.2	6400
NKIS50	518	NKS60	335	50	60	80	28	1.1	2	50.4	78.4	6000
NKIS55	558	NKS65	356	55	65	85	28	1.1	2	53.6	86.4	5600
NKIS60	560	NKS70	380	60	70	90	28	1.1	2	54.4	90.4	5200
NKIS65	641	NKS75	402	65	75	95	28	1.1	2	56.8	98.4	4800
NKIS70	68	NKS80	413	70	80	100	28	1.1		60	106.4	4400
		NKS115	700		115	135	32	1.1		72.8	163.2	3200
