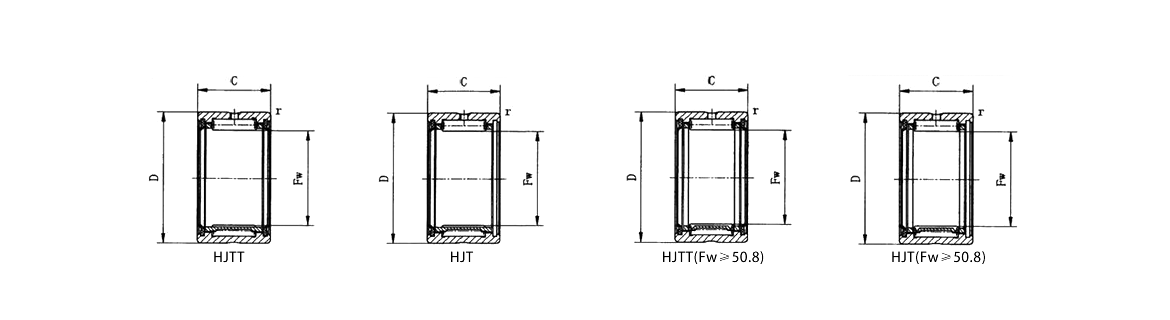

| Bearing Designation With Inner | Mass (g) | Boundary Dimensions (mm) | Basic Load Rating (kN) | Limiting Speed (rpm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Fw | D | C | Imin | C Dynamic | Co Static | ||||
HJTT101816 | HJT101816 | 68 | 15.875 | 28.575 | 25.4 | 0.6 | 14.328 | 14.94 | 4880 |
HJTT122016 | HJT122016 | 73 | 19.05 | 31.75 | 25.4 | 1 | 15.3 | 16.848 | 4080 |
HJTT142216 | HJT142216 | 82 | 22.225 | 34.925 | 25.4 | 1 | 17.1 | 20.16 | 3520 |
HJTT162416 | HJT162416 | 91 | 25.4 | 38.1 | 25,4 | 1 | 18.72 | 23.472 | 3040 |
HJTT182620 | HJT182620 | 125 | 28.575 | 41.275 | 31.75 | 1 | 27.72 | 40.32 | 2720 |
HJTT202820 | HJT202820 | 130 | 31.75 | 44.45 | 31.75 | 1 | 28.512 | 42.84 | 2480 |
HJTT223020 | HJT223020 | 145 | 34.925 | 47.625 | 31.75 | 1 | 30.348 | 47.88 | 2240 |
HJTT243320 | HJT243320 | 172 | 38.1 | 52.388 | 31.75 | 1.5 | 35.748 | 53.28 | 2000 |
HJTT263520 | HJT263520 | 185 | 41.275 | 55.563 | 31.75 | 1.5 | 36.72 | 56.52 | 1920 |
HJTT283720 | HJT283720 | 200 | 44.45 | 58.738 | 31.75 | 1.5 | 37.8 | 59.76 | 1760 |
HJTT324120 | HJT324120 | 220 | 50.8 | 65.088 | 31.75 | 1.5 | 40.68 | 68.76 | 1520 |
HJTT364828 | HJT364828 | 480 | 57.15 | 76.2 | 44.45 | 1.5 | 71.64 | 130.32 | 1360 |
HJTT405228 | HJT405228 | 520 | 63.5 | 82.55 | 44.45 | 2 | 77.4 | 148.68 | 1200 |
HJTT445628 | HJT445628 | 570 | 69.85 | 88.9 | 44.45 | 2 | 80.28 | 161.28 | 1120 |
HJTT486028 | HJT486028 | 640 | 76.2 | 95.25 | 44.45 | 2 | 85.68 | 179.64 | 1040 |
