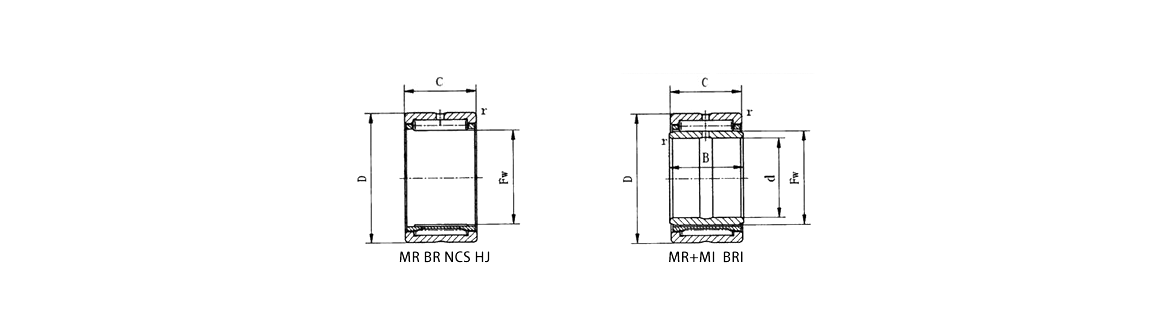

MR BR NCS HJ | MR+MI BRI

Bearing Designation With Inner		Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)						Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner		Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	B	D	C	rmin	Allowable offset (s)	C Dynamic	C o Static	Limiting Speed (rpm)
MR101812+MI061012	BRI 61812	69	MR101812	50	9.525	15.875	19.3	28.575	19.05	0.6	2	13.36	13.36	20000
MR101816+MI061016		93	MR101816	68	9.525	15.875	25.65	28.575	25.4	0.6	3	17.2	18.4	20000
MR122012+MI081212	BRI 82012	79	MR122012	55	12.7	19.05	19.3	31.75	19.05	1	4	15.6	16.88	16800
MR122016+MI081216	BRI 82016	105	MR122016	73	12.7	19.05	25.65	31.75	25.4	1	2	20	23.28	16800
MR142212+MI101412	BRI102212	86	MR142212	59	15.875	22.225	19.3	34.925	19.05	1	1	17.52	20.48	14400
MR142216+MI101416	BRI102216	118	MR142216	82	15.875	22.225	25.65	34.925	25.4	1	2	22.56	28.4	14400
MR142212+MI111412		79			17.462	22.225	19.3	34.925	19.05	1	1.5	17.52	20.48	14400
MR162412+MI121612	BRI122412	102	MR162412	68	19.05	25.4	19.3	38.1	19.05	1	1	18.4	22.48	12800
MR162416+MI121616	BRI122416	136	MR162416	91	19.05	25.4	25.65	38.1	25.4	1	1.5	23.6	30.8	12800
MR162416+MI131616		125			20.638	25.4	25.65	38.1	25.4	1	2	23.6	30.8	12800
MR182616+MI141816	BRI142616	152	MR182616	100	22.225	28.575	25.65	41.275	25.4	1	1.5	26	36	11200
MR182620+MI141820	BRI142620	193	MR182620	127	22.225	28.575	32	41.275	31.75	1	2	32.4	48	11200
MR182616+MI151816		139			23.812	28.575	25.65	41.275	25.4	1	2	26	36	11200
MR182620+MI151820		176			23.812	28.575	32	41.275	31.75	1	2	32.4	48	11200
			NCS2012	78		31.75		44.45	19.05	1		22.4	26.5	10400
MR202816+MI162016	BRI162816	161	MR202816	109	25.4	31.75	25.65	44.45	25.4	1	1.5	28	40.8	10400
MR202820+MI162020	BRI162820	201	MR202820	136	25.4	31.75	32	44.45	31.75	1	2	34.8	54.4	10400
MR223016+MI182216	BRI183016	181	MR223016	118	28.575	34.925	25.65	47.625	25.4	1	3	29.6	46	8800
MR223020+M1182220	BRI183020	229	MR223020	150	28.575	34.925	32	47.625	31.75	1	2	37.2	61.2	8800
MR243320+MI192420		286			30.162	38.1	32	52.388	31.75	1	2	40.8	65.2	8800
MR243316+MI202416	BRI203316	230	MR243316	143	31.75	38.1	25.65	52.388	25.4	1.5	0.5	32.8	48.8	8800
MR243320+MI202420	BRI203320	285	MR243320	180	31.75	38.1	32	52.388	31.75	1.5	1	40.8	65.2	8800
MR263516+MI212616		257			33.338	41.275	25.65	55.562	25.4	1.5	0.5	34.8	54.4	7600
MR263520+MI212620		325			33.338	41.275	32	55.562	31.75	1.5	1	43.6	72.4	7600
	BRI223516	240	MR263516	153	34.925	41.275	25.65	55.562	25.4		1.5	34.8	54.4	7600
MR263520+MI222620	BRI223520	286	MR263520	191	34.925	41.275	32	55.562	31.75	1.5	0.5	43.6	72.4	7600
MR283716+MI222816		294			34.925	44.45	25.65	58.738	25.4	1.5	0.5	35.6	57.6	7200
MR283720+MI222820		364			34.925	44.45	32	58.738	31.75	1.5	1	44.4	76.4	7200
MR283716+MI232816		264			36.512	44.45	25.65	58.738	25.4	1.5	0.5	35.6	57.6	7200
MR283720+MI232820		330			36.512	44.45	32	58.738	31.75	1.5	0.5	44.4	76.4	7200

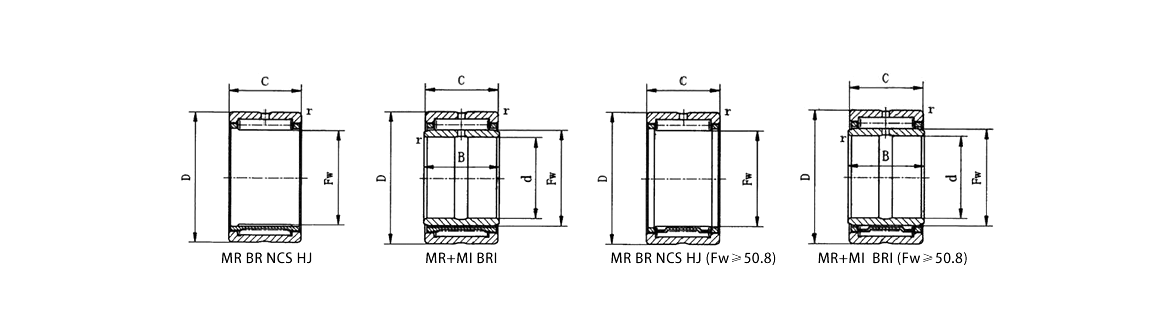

MR BR NCS HJ | MR+MI BRI | MR BR NCS HJ (Fw≥50.8) | MR+MI BRI (Fw≥50.8)

Bearing Designation With Inner		Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)						Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner		Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	B	D	C	rmin	Allowable offset (s)	C Dynamic	C o Static	Limiting Speed (rpm)
MR283716+MI242816	BRI243716	246	MR283716	163	38.1	44.45	25.65	58.738	25.4	1.5	0.5	35.6	57.6	7200
MR283720+MI242820	BRI243720	307	MR283720	204	38.1	44.45	32	58.738	31.75	1.5	0.5	44.4	76.4	7200
	BRI243820	330	BR283820	230	38.1	44.45	32	60.325	31.75	1.5	0.5	45.8	62.4	7000
			NCS3016	180	38.1	47.625		61.912	25.4	1.5		37.2	66.2	6800
	BRI243920	370	MR303920	216	38.1	47.625	32	91.912	31.75	1.5	0.5	47.2	84	6800
MR324120+MI243220		448			38.1	50.8	32	65.088	31.75	1.5	0.5	49.6	91.2	6400
MR303920+MI253020		368			39.688	47.625	32	61.912	31.75	1.5	1	47.2	84	6800
MR324120+MI253220		424			39.688	50.8	32	65.088	31.75	1.5	0.5	49.6	91.2	6400
MR324116+MI263216	BRI264116	317	MR324116	183	41.275	50.8	25.65	65.088	25.4	1.5	0.5	39.6	68.8	6400
MR324120+MI263220	BRI264120	402	MR324120	227	41.275	50.8	32	65.088	31.75	1.5	1	49.6	91.2	6400
MR324116+MI273216		300			42.682	50.8	25.65	65.088	25.4	1.5	0.5	39.6	68.8	6400
MR324120+MI273220		373			42.682	50.8	32	65.088	31.75	1.5	0.5	49.6	91.2	6400
MR364824+MI283624	BRI284824	732	MR364824	422	44.45	57.15	38.35	76.2	38.1	1.5	3.5	66:8	113.6	5600
MR364828+MI283628	BRI284828	853	MR364828	493	44.45	57.15	44.7	76.2	44.45	1.5	3.5	77.6	138.4	5600
MR405224+MI314024		848			49.212	63.5	38.35	82.55	38.1	2	1.5	70.4	126.4	5200
MR405228+MI314028		975			49.212	63.5	44.7	82.55	44.45	2	2	81.6	152.8	5200
MR405224+MI324024	BRI325224	812	MR405224	472	50.8	63.5	38.35	82.55	38.1	2	2.5	70.4	126.4	5200
MR405228+MI320428	BRI325228	923	MR405228	533	50.8	63.5	44.7	82.55	44.45	2	3	81.6	152.8	5200
MR445628+MI354428		1070			55.562	69.85	44.7	88.9	44.45	2	1.5	85.6	167.2	4400
MR445616+MI364416		594	MR445616	343	57.15	69.85	25.65	88.9	25.4	2	0.5	52.8	89.6	4400
MR445624+MI364424	BRI365624	884	MR445624	504	57.15	69.85	38.35	88.9	38.1	2	2.5	73.6	138.4	4400
MR445628+MI364428	BRI365628	1020	MR445628	580	57.15	69.85	44.7	88.9	44.45	2	3	85.6	167.2	4400
MR486028+MI384828		1250			60.325	76.2	44.7	95.25	44.45	2	1.5	89.6	181.6	4000
MR486024+MI404824	BRI406024	978	MR486024	558	63.5	76.2	38.35	95.25	38.1	2	2.5	76.8	150.4	4000
MR486028+MI404828	BRI406028	1140	MR486028	651	63.5	76.2	44.7	95.25	44.45	2	3	89.6	181.6	4000
MR526828+MI425228		1670			66.675	82.55	44.7	107.95	44.45	2	3	107.2	192	4000
MR526832+MI425232		1920			66.675	82.55	51.05	107.95	50.8	2	5.5	116.8	214.4	4000
MR526828+MI445228	BRI446828	1550	MR526828	1020	69.85	82.55	44.7	107.95	44.45	2	1.5	107.2	192	4000
MR526832+MI445232	BRI446832	1770	MR526832	1170	69.85	82.55	51.05	107.95	50.8	2	3	116.8	214.4	4000
MR567232+MI475632		2000			74.612	88.9	51.05	114.3	50.8	2	3	123.2	236	3600

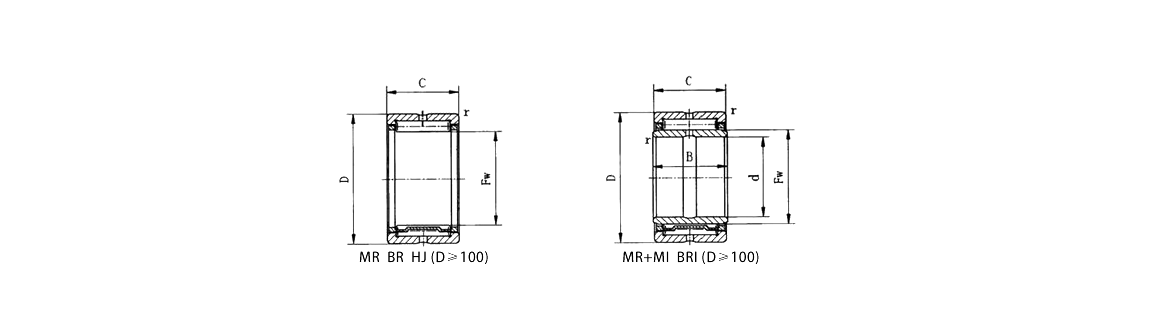

MR BR HJ (D≥100) | MR+MI BRI (D≥100)

Bearing Designation With Inner		Mass (g)	Bearing Designation Without Inner	Mass (g)	Boundary Dimensions (mm)						Allowable offset (s)	Basic Load Rating (kN)		Limiting Speed (rpm)
Bearing Designation With Inner		Mass (g)	Bearing Designation Without Inner	Mass (g)	d	Fw	B	D	C	rmin	Allowable offset (s)	C Dynamic	C o Static	Limiting Speed (rpm)
MR567228+MI485628		1650	MR567228	1080	76.2	88.9	44.7	114.3	44.45	2	3	112.8	211.2	3600
MR567232+MI485632	BRI487232	1920	MR567232	1270	76.2	88.9	51.05	114.3	50.8	2	5.5	123.2	236	3600
MR607632+MI506032		2150			79.375	95.25	51.05	120.65	50.8	2.5	5.5	129.6	256	3360
MR607632+MI526032	BRI527632	1990	MR607632	1280	82.55	95.25	51.05	120.65	50.8	2.5	2.5	129.6	256	3360
MR648032+MI526432		2390			82.55	101.6	51.05	127	50.8	2.5	2.5	135.2	276	3120
MR648032+MI546432		2220			85.725	101.6	51.05	127	50.8	2.5	4.5	135.2	276	3120
MR648032+MI566432	BRI568032	2050	MR648032	1290	88.9	101.6	51.05	127	50.8	2.5	2.5	135.2	276	3120
MR688432+MI566832		2530			88.9	107.95	51.05	133.35	50.8	2.5	2.5	137.6	288	2960
MR688432+MI586832		2360			92.075	107.95	51.05	133.35	50.8	2.5	4.5	137.6	288	2960
MR688432+MI606832		2170	MR688432	1360	95.25	107.95	51.05	133.35	50.8	2.5	2.5	137.6	288	2960
MR729636+MI607236		4020			95.25	114.3	57.4	152.4	57.15	2.5	3	190.4	348	2800
MR729640+MI607240		4470			95.25	114.3	63.88	152.4	63.5	2.5	4	208	388	2800
MR729636+MI627236		3770	MR729636	2620	98.425	114.3	57.4	152.4	57.15	2.5	5.5	190.4	348	2800
MR729640+MI627240		4190	MR729640	2910	98.425	114.3	63.88	152.4	63.5	2.5	7	208	388	2800
MR8010432+M648032		3600	MR8010432	2530	101.6	127	51.05	165.1	50.8	2.5	2.5	181.6	340	2480
MR8010436+M648036		4920	MR8010436	2870	101.6	127	57.4	165.1	57.15	2.5	5.5	200	384	2480
MR8010440+MI648040		5470	MR8010440	3190	101.6	127	63.88	165.1	63.5	2.5	7	218.4	428	2480
MR8010436+MI688036		4440			107.95	127	57.4	165.1	57.15	2.5	3	200	384	2480
MR8811240+MI728840		6040	MR8811240	3460	114.3	139.7	63.88	177.8	63.5	2.5	5.5	228	468	2320
MR8811248+MI728848		7260	MR8811248	4160	114.3	139.7	76.58	177.8	76.2	2.5	7	276	592	2320
MR9211648+MI769248		7480	MR9211648	4300	120.65	146.05	82.55	184.15	76.2	3	3	288	620	2160
MR9612040+MI809640		6540	MR9612040	3740	127	152.4	63.88	190.5	63.5	3	7	248	504	2080
MR9612048+M809648		7840	MR9612048	4490	127	152.4	76.58	190.5	76.2	3	5.5	300	640	2080
MR10412840+M18810440		6860	MR10412840	4020	139.7	165.1	63.88	203.2	63.5	3	6	260	544	1920
MR10412848+M18810448		8220	MR10412848	4820	139.7	165.1	76.58	203.2	76.2	3	5.5	312	696	1920
MR11614648+MI9611648		1220	MR11614648	7360	152.4	184.15	76.58	231.775	76.2	3	8.5	348	732	1760
MR12415448+M10412448		1310	MR12415448	7800	165.1	196.85	76.58	244.475	76.2	3	8.5	364	792	1600
MR13216248+M11213248		1400	MR13216248	8360	177.8	209.55	76.58	257.157	76.2	3	8.5	380	848	1520
MR14017048+M112014048		1500	MR14017048	8810	190.5	222.25	76.58	269.875	76.2	4	7	396	912	1440
MR14817848+M12814848		1580	MR14817848	9270	203.2	234.95	76.58	282.575	76.2	4	7	408	968	1360
