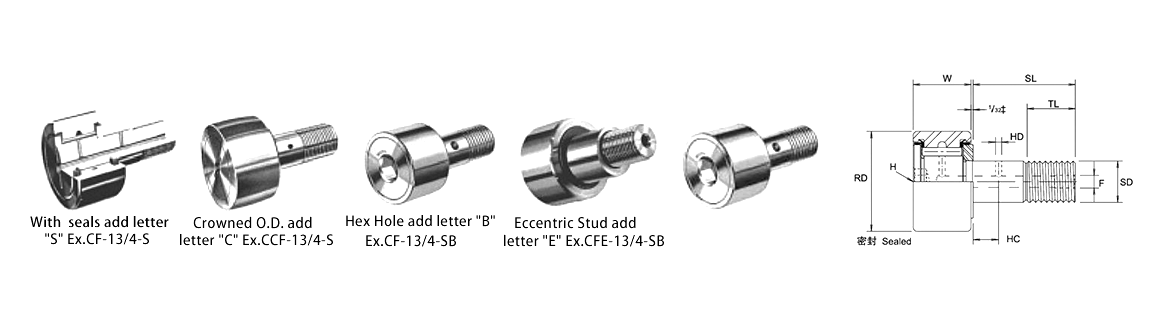

RSTO STO | Yoke type track rollers,outer ring without ribs,with or without inner ring |
RNA22...2RS NA22...2RS | Yoke type track rollers,without axial guidance,lip seals on both sides,with or without inner ring |
NATR | Yoke type track rollers,with axial guidance,gap seals on both sides |
NATR...PP | Yoke type track rollers,with axial guidance,plastic axial plain washers on both sides |
NATV | Yoketype track rollers,full complement needle roller set,with axial guidance,gap seals on both sides |
NATV...PP | Yoke type track rollers,full complement needle roller set,with axial guidance,plastic axial plain washers on both sides |
NUTR | Yoke type track rollers,full complement cylindrical roller set,with axial guidance,labyrinth seals on both sides |
PWTR | Yoke type track rollers,full complement cylindrical roller set,with axial guidance,lip seals on both sides |
CYR | Inch series,plain retaining ring,axial guiding,yoke type track rollers |
KR | with axial guidance,gap seals on both sides |
KR...PP | with axial guidance,plastic axial plain washers on both sides |
KRE | with axial guidance,with eccentric collar,gap seals on both sides |
KRE...PP | with axial guidance,with eccentric collar,plasticaxial plain washers on both sides |
KRV | with axial guidance,full complement needle roller set,gap seals on both sides |
KRV...PP | with axial guidance,full complement needle roller set,plastic axial plainwashers on both sides |
KRVE | with axial guidance,with eccentric collar,full complement needle roller set,gap seals on both sides |
KRVE...PP | with axial guidance,with eccentric collar,full complement needle roller set,plastic axial plain washers on both sides |
NUKR | with axial guidance,full complement cylindrical roller set,labyrinth seals on both sides |
NUKRE | with axial guidance,with eccentric collar,full complement cylindrical roller set,labyrinth seals on both sides |
PWKR | with axial guidance,full complement cylindrical roller set,lip seals on both sides |
CF | Inch series,stud type track rollers |
CFE | Inch series,stud type track rollers with eccentric collar |

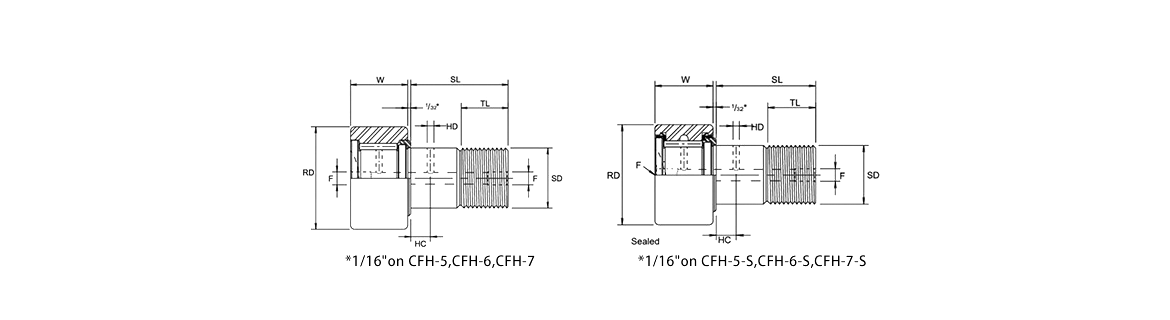

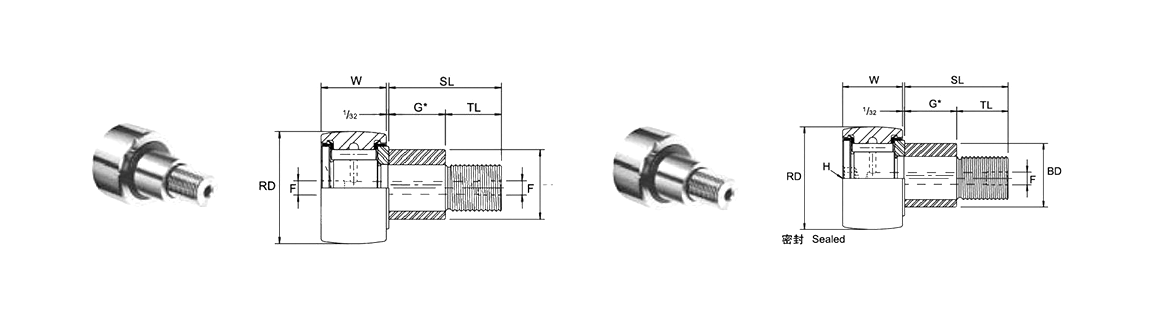

CFH | Inch series,heavy stud type track rollers |
CFHE | Inch series,heavy stud type track rollers with eccentric collar |
| BASIC BEARING NO. BEARINGSIZE | BUSHING DIA. ±.001 | RECOMMENDED HOUSING BORE DIA. ±.001 |
|---|---|---|
1/2 | 0.250 | 0.253 |
9/16 | 0.250 | 0.253 |
5/8 | 0.375 | 0.378 |
11/16 | 0.375 | 0.378 |
3/4 | 0.500 | 0.503 |
7/8 | 0.500 | 0.503 |
1 | 0.625 | 0.628 |
11/8 | 0.625 | 0.628 |
11/4 | 0.687 | 0.690 |
13/8 | 0.687 | 0.690 |
11/2 | 0.875 | 0.878 |
15/8 | 0.875 | 0.878 |
13/4 | 1.000 | 1.003 |
17/8 | 1.000 | 1.003 |
2 | 1.187 | 1.190 |
21/4 | 1.187 | 1.190 |
21/2 | 1.375 | 1.378 |
23/4 | 1.375 | 1.378 |
3 | 1.750 | 1.753 |
31/4 | 1.750 | 1.753 |
31/2 | 1.812 | 1.815 |
4 | 2.000 | 2.003 |
| BASIC BEARING NO. | HEX WRENCH SIZE | BASIC BEARING NO. | HEX WRENCH SIZE |
|---|---|---|---|
1/2 | 1/8 | 17/8 | 5/16 |
9/16 | 1/8 | 2 | 7/16 |
5/8 | 1/8 | 21/4 | 7/16 |
11/16 | 1/8 | 21/2 | 1/2 |
3/4 | 3/16 | 23/4 | 1/2 |
7/8 | 3/16 | 3 | 3/4 |
1 | 1/4 | 31/4 | 3/4 |
11/8 | 1/4 | 31/2 | 3/4 |
11/4 | 1/4 | 4 | 3/4 |
13/8 | 1/4 | 5 | 7/8 |
11/2 | 5/16 | 6 | 1 |
15/8 | 5/16 | 7,8,9,10 | 11/4 |
13/4 | 5/16 |
| UNSEALED BRG. NO. | SEALED BRG. NO. | ROLLER DIA.(RD) +.000 -.001 | ROLLER WIDTH (W) +.000 -.005 | STUD DIA (SD) +.001 -.000 | STUD L'GTH.(SL) | MIN. THR'D L'GTH. (TL) | FINE THR'DS. | OIL HOLE | LUB. FIT-TING SIZE (F)* | RECOM. CLAM PING TORQUE LBS.-IN. | MAX. STATIC CAPACITY LBS. | BASIC DYN. RATING LBS. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HOLE CENTER (HC) | HOLE DIA (HD) | ||||||||||||

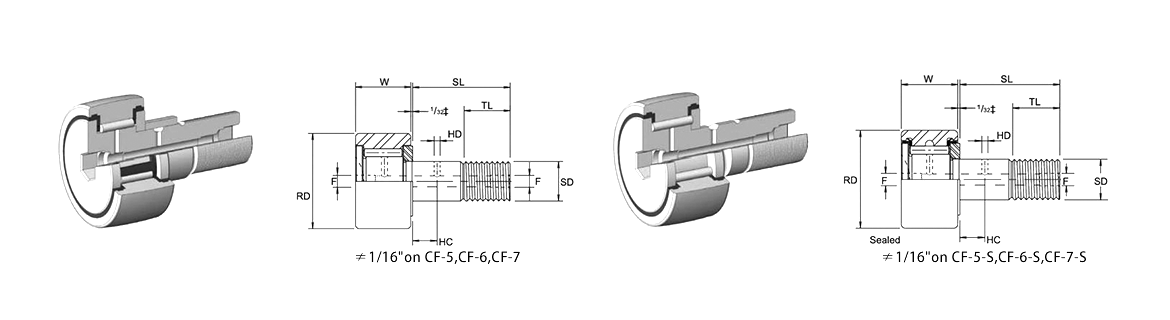

CF-1/2-N | CF-1/2-N-S | .500 | .344 | .190 | 1/2 | 1/4 | 10-32 | 1/8 | 15 | 720 | 620 | ||
CF-1/2 | CF-1/2-S | .500 | .375 | .190 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 | ||
CF-9/16 | CF-9/16-S | .5625 | .375 | .190 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 | ||
CF-5/8-N | CF-5/8-N-S | .625 | .406 | .250 | 5/8 | 5/16 | 1/4-28 | 1/8 | 35 | 1085 | 930 | ||
CF-5/8 | CF-5/8-S | .625 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 | 1/8 | 35 | 1215 | 955 | ||
CF-11/16 | CF 11/16-S | .6875 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 | 1/8 | 35 | 1215 | 955 | ||
CF-3/4 | CF-3/4-S | .750 | .500 | .375 | 7/8 | 3/8 | 3/8-24 | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
CF-7/8 | CF-7/8-S | .875 | .500 | .375 | 7/8 | 3/8 | 3/8-24 | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
CF-1 | CF-1-S | 1.000 | .625 | .4375 | 1 | 1/2 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
CF-11/8 | CF-11/8-S | 1.125 | .625 | .4375 | 1 | 1/2 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
CF-11/4 | CF-11/4-S | 1.250 | .750 | .500 | 11/4 | 5/8 | 1/2-20 | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
CF-13/8 | CF-13/8-S | 1.375 | .750 | .500 | 11/4 | 5/8 | 1/2-20 | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
CF-11/2 | CF-11/2-S | 1.500 | .875 | .625 | 11/2 | 3/4 | 5/8-18 | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
CF-15/8 | CF-15/8-S | 1.625 | .875 | .625 | 11/2 | 3/4 | 5/8-18 | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
CF-13/4 | CF-13/4-S | 1.750 | 1.000 | .750 | 13/4 | 7/8 | 3/4-16 | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
CF-17/8 | CF-17/8-S | 1.875 | 1.000 | .750 | 13/4 | 7/8 | 3/4-16 | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
CF-2 | CF-2-S | 2.000 | 1.250 | .875 | 2 | 1 | 7/8-14 | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
CF-21/4 | CF-21/4-S | 2.250 | 1.250 | .875 | 2 | 1 | 7/8-14 | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
CF-21/2 | CF-21/2-S | 2.500 | 1.500 | 1.000 | 21/4 | 11/8 | 1-14 | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
CF-23/4 | CF-23/4-S | 2.750 | 1.500 | 1.000 | 21/4 | 11/8 | 1-14 | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
CF-3 | CF-3-S | 3.000 | 1.750 | 1.250 | 21/2 | 11/4 | 11/4-12 | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
CF-31/4 | CF-31/4-S | 3.250 | 1.750 | 1.250 | 21/2 | 11/4 | 11/4-12 | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
CF-31/2 | CF-31/2-S | 3.500 | 2.000 | 1.375 | 23/4 | 13/8 | 13/8-12 | 11/16 | 1/8 | 1/4 | 4200 | 31625 | 22800 |
CF-4 | CF-4-S | 4.000 | 2.250 | 1.500 | 31/2 | 11/2 | 11/2-12 | 3/4 | 1/8 | 1/4 | 5000 | 44770 | 29985 |
CF-5-S | 5.000 | 2.750 | 2.000 | 51/16 | 29/16 | 2-12 | 7/8 | 3/16 | 1/4 N.P.T. | 5000 | 67950 | 46575 | |
CF-6-S | 6.000 | 3.250 | 2.500 | 6 | 3 | 21/2-12 | 1 | 3/16 | 1/4 N.P.T. | 5000 | 80450 | 60000 | |
CF-7-S | 7.000 | 3.750 | 3.000 | 711/16 | 41/8 | 3-12 | 11/4 | 3/16 | 1/4 N.P.T. | 5000 | 106930 | 75380 | |
CF-8-S | 8.000 | 4.250 | 3.250 | 81/2 | 41/4 | 31/4-4 | 1/4 N.P.T. | 5000 | 144100 | 92200 | |||
CF-9-S | 9.000 | 4.750 | 3.750 | 91/2 | 43/4 | 31/2-4 | 1/4 N.P.T. | 5000 | 183430 | 113260 | |||
CF-10-S | 10.000 | 5.250 | 4.250 | 10 | 43/4 | 31/2-4 | 1/4 N.P.T | 5000 | 215565 | 131545 | |||
| UNSEALED BRG. NO. | SEALED BRG. NO. | ROLLER DIA.(RD) +.000 -.001 | ROLLER WIDTH (W) +.000 -.005 | STUD DIA (SD) +.001 -.000 | STUD L'GTH.(SL) | MIN. THR'D L'GTH. (TL) | FINE THR'DS. | OIL HOLE | LUB. FIT-TING SIZE (F)* | RECOM. CLAM PING TORQUE LBS.-IN. | MAX. STATIC CAPACITY LBS. | BASIC DYN. RATING LBS. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HOLE CENTER (HC) | HOLE DIA (HD) | ||||||||||||
CF-1/2-N-B | CF-1/2-N-SB | .500 | .344 | .190 | 1/2 | 1/4 | 10-32 | 15 | 720 | 620 | |||
CF-1/2-B | CF-1/2-SB | .500 | .375 | .190 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |||
CF-9/16-B | CF-9/16-SB | .5625 | .375 | .190 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |||
CF-5/8-N-B | CF-5/8-N-SB | .625 | .406 | .250 | 5/8 | 5/16 | 1/4-28 | 35 | 1085 | 930 | |||
CF-5/8-B | CF-5/8-SB | .625 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 | 35 | 1215 | 955 | |||
CF-11/16-B | CF-11/16-SB | .6875 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 | 35 | 1215 | 955 | |||
CF-3/4-B | CF-3/4-SB | .750 | .500 | .375 | 7/8 | 3/8 | 3/8-24 | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
CF-7/8-B | CF-7/8-SB | .875 | .500 | .375 | 7/8 | 3/8 | 3/8-24 | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
CF-1-B | CF-1-SB | 1.000 | .625 | .4375 | 1 | 1/2 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
CF-11/8-B | CF-11/8-SB | 1.125 | .625 | .4375 | 1 | 1/2 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
CF-11/4-B | CF-11/4-SB | 1.250 | .750 | .500 | 11/4 | 5/8 | 1/2-20 | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
CF-13/8-B | CF-13/8-SB | 1.375 | .750 | .500 | 11/4 | 5/8 | 1/2-20 | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
CF-11/2-B | CF-11/2-SB | 1.500 | .875 | .625 | 11/2 | 3/4 | 5/8-18 | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
CF-15/8-B | CF-15/8-SB | 1.625 | .875 | .625 | 11/2 | 3/4 | 5/8-18 | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
CF-13/4-B | CF-13/4-SB | 1.750 | 1.000 | .750 | 13/4 | 7/8 | 3/4-16 | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
CF-17/8-B | CF-17/8-SB | 1.875 | 1.000 | .750 | 13/4 | 7/8 | 3/4-16 | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
CF-2-B | CF-2-SB | 2.000 | 1.250 | .875 | 2 | 1 | 7/8-14 | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
CF-21/4-B | CF-21/4-SB | 2.250 | 1.250 | .875 | 2 | 1 | 7/8-14 | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
CF-21/2-B | CF-21/2-SB | 2.500 | 1.500 | 1.000 | 21/4 | 11/8 | 1-14 | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
CF-23/4-B | CF-23/4-SB | 2.750 | 1.500 | 1.000 | 21/4 | 11/8 | 1-14 | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
CF-3-B | CF-3-SB | 3.000 | 1.750 | 1.250 | 21/2 | 11/4 | 11/4-12 | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
CF-31/4-B | CF-31/4-SB | 3.250 | 1.750 | 1.250 | 21/2 | 11/4 | 11/4-12 | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
CF-31/2-B | CF-31/2-SB | 3.500 | 2.000 | 1.375 | 23/4 | 13/8 | 13/8-12 | 11/16 | 1/8 | 1/4 | 4200 | 31625 | 22800 |
CF-4-B | CF-4-SB | 4.000 | 2.250 | 1.500 | 31/2 | 11/2 | 11/2-12 | 3/4 | 1/8 | 1/4 | 5000 | 44770 | 29985 |
| UNSEALED BRG. NO. | SEALED BRG. NO. | ROLLER DIA (RD) +.000 -001 | ROLLER WIDTH (W) +.000 -.005 | BUSH L'GTH (G) +.000 -.010 | BUSH. DIA.(BD) ±.001 | STUD L' GTH.(SL) | MIN. THR'D L'GTH.(TL) | FINE THR'DS. | ECC. | LUB. FIT-TING SIZE (F) | RECOM. CLAMPING TORQUE LBS.-IN. | MAX. STATIC CAPACITY LBS. | BASIC DYN. RATING LBS. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

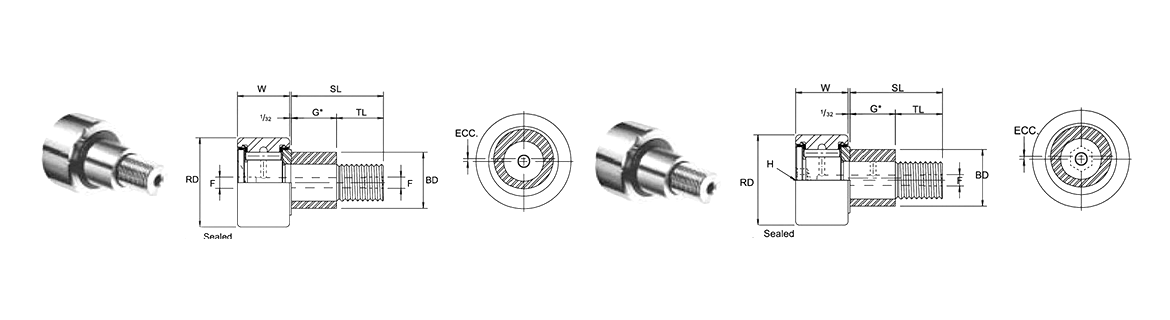

CFE-1/2 | CFE-1/2-S | .500 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | 1/8 | 15 | 790 | 680 |
CFE-9/16 | CFE-9/16-S | .5625 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | 1/8 | 15 | 790 | 680 |
CFE-5/8 | CFE-5/8-S | .625 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | 1/8 | 35 | 1215 | 955 |
CFE-11/16 | CFE-11/16-S | .6875 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | 1/8 | 35 | 1215 | 955 |
CFE-3/4 | CFE-3/4-S | .750 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
CFE-7/8 | CFE-7/8-S | .875 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
CFE-1 | CFE-1-S | 1.000 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
CFE-11/8 | CFE-11/8-S | 1.125 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
CFE-11/4 | CFE-11/4-S | 1.250 | .750 | .625 | .687 | 11/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
CFE-13/8 | CFE-13/8-S | 1.375 | .750 | .625 | .687 | 11/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
CFE-11/2 | CFE-11/2-S | 1.500 | .875 | .750 | .875 | 11/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
CFE-15/8 | CFE-15/8-S | 1.625 | .875 | .750 | .875 | 11/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
CFE-13/4 | CFE-13/4-S | 1.750 | 1.000 | .875 | 1.000 | 13/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
CFE-17/8 | CFE-17/8-S | 1.875 | 1.000 | .875 | 1.000 | 13/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
CFE-2 | CFE-2-S | 2.000 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
CFE-21/4 | CFE-21/4-S | 2.250 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
CFE-21/2 | CFE-21/2-S | 2.500 | 1.500 | 1.125 | 1.375 | 21/4 | 11/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
CFE-23/4 | CFE-23/4-S | 2.750 | 1.500 | 1.125 | 1.375 | 21/4 | 11/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
CFE-3 | CFE-3-S | 3.000 | 1.750 | 1.250 | 1.750 | 21/2 | 11/4 | 11/4-12 | .060 | 1/4 | 3450 | 24910 | 15720 |
CFE-31/4 | CFE-31/4-S | 3.250 | 1.750 | 1.250 | 1.750 | 21/2 | 11/4 | 11/4-12 | .060 | 1/4 | 3450 | 24910 | 15720 |
CFE-31/2 | CFE-31/2-S | 3.500 | 2.000 | 1.375 | 1.812 | 23/4 | 13/8 | 13/8-12 | .060 | 1/4 | 4200 | 31625 | 22800 |
CFE-4 | CFE-4-S | 4.000 | 2.250 | 2.000 | 2.000 | 31/2 | 11/2 | 11/2-12 | .060 | 1/4 | 5000 | 44770 | 29985 |
| UNSEALED BRG. NO. | SEALED BRG. NO. | ROLLER DIA (RD) +.000 -001 | ROLLER WIDTH (W) +.000 -.005 | BUSH L'GTH (G) +.000 -.010 | BUSH. DIA.(BD) ±.001 | STUD L' GTH.(SL) | MIN. THR'D L'GTH.(TL) | FINE THR'DS. | ECC. | LUB. FIT-TING SIZE (F) | RECOM. CLAMPING TORQUE LBS.-IN. | MAX. STATIC CAPACITY LBS. | BASIC DYN. RATING LBS. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CFE-1/2-N-B | CFE-1/2-N-SB | .500 | .344 | .250 | .250 | 1/2 | 1/4 | 10-32 | .010 | 15 | 720 | 620 | |
CFE-1/2-B | CFE-1/2-SB | .500 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | 15 | 790 | 680 | |
CFE-9/16-B | CFE-9/16-SB | .5625 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | 15 | 790 | 680 | |
CFE-5/8-B | CFE-5/8-SB | .625 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | 35 | 1215 | 955 | |
CFE-11/16-B | CFE-11/16-SB | .6875 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | 35 | 1215 | 955 | |
CFE-3/4-B | CFE-3/4-SB | .750 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
CFE-7/8-B | CFE-7/8-SB | .875 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
CFE-1-B | CFE-1-SB | 1.000 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
CFE-11/8-B | CFE-11/8-SB | 1.125 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
CFE-11/4-B | CFE-11/4-SB | 1.250 | .750 | .625 | .687 | 11/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
CFE-13/8-B | CFE-13/8-SB | 1.375 | .750 | .625 | .687 | 11/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
CFE-11/2-B | CFE-11/2-SB | 1.500 | .875 | .750 | .875 | 11/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
CFE-15/8-B | CFE-15/8-SB | 1.625 | .875 | .750 | .875 | 11/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
CFE-13/4-B | CFE-13/4-SB | 1.750 | 1.000 | .875 | 1.000 | 13/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
CFE-17/8-B | CFE-17/8-SB | 1.875 | 1.000 | .875 | 1.000 | 13/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
CFE-2-B | CFE-2-SB | 2.000 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
CFE-21/4-B | CFE-21/4-SB | 2.250 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
CFE-21/2-B | CFE-21/2-SB | 2.500 | 1.500 | 1.125 | 1.375 | 21/4 | 11/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
CFE-23/4-B | CFE-23/4-SB | 2.750 | 1.500 | 1.125 | 1.375 | 21/4 | 11/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
CFE-3-B | CFE-3-SB | 3.000 | 1.750 | 1.250 | 1.750 | 21/2 | 11/4 | 11/4-12 | .060 | 1/4 | 3450 | 24910 | 15720 |
CFE-31/4-B | CFE-31/4-SB | 3.250 | 1.750 | 1.250 | 1.750 | 21/2 | 11/4 | 11/4-12 | .060 | 1/4 | 3450 | 24910 | 15720 |
CFE-31/2-B | CFE-31/2-SB | 3.500 | 2.000 | 1.375 | 1.812 | 23/4 | 13/8 | 13/8-12 | .060 | 1/4 | 4200 | 31625 | 22800 |
CFE-4-B | CFE-4-SB | 4.000 | 2.250 | 2.000 | 2.000 | 31/2 | 11/2 | 11/2-12 | .060 | 1/4 | 5000 | 44770 | 29985 |
| UNSEALED BRG. NO. | ROLLER DIA.(RD) +.000 -.001 | ROLLER WIDTH (W) +.000 -.005 | STUD DIA (SD) +.001 -.000 | STUD L'GTH.(SL) | MIN. THR'D L'GTH. (TL) | FINE THR'DS. | OIL HOLE | LUB. FIT-TING SIZE (F)* | RECOM. CLAM PING TORQUE LBS.-IN. | MAX. STATIC CAPACITY LBS. | BASIC DYN. RATING LBS. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HOLE CENTER (HC) | HOLE DIA (HD) | |||||||||||

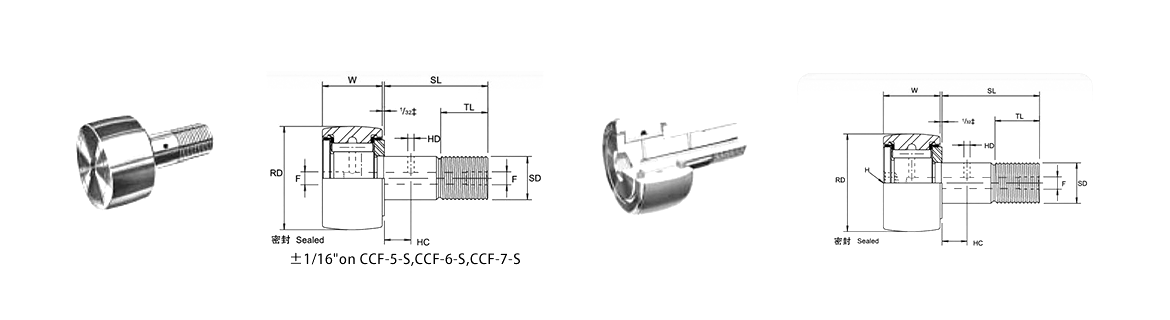

CCF-1/2-N-S | .500 | .344 | .190 | 1/2 | 1/4 | 10-32 | 1/8 | 15 | 720 | 620 | ||
CCF-1/2-S | .500 | .375 | .190 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 | ||
CCF-9/16-S | .5625 | .375 | .190 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 | ||
CCF-5/8-N-S | .625 | .406 | .250 | 5/8 | 5/16 | 1/4-28 | 1/8 | 35 | 1085 | 930 | ||
CCF-5/8-S | .625 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 | 1/8 | 35 | 1215 | 955 | ||
CCF-11/16-S | .6875 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 | 1/8 | 35 | 1215 | 955 | ||
CCF-3/4-S | .750 | .500 | .375 | 7/8 | 3/8 | 3/8-24 | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
CCF-7/8-S | .875 | .500 | .375 | 7/8 | 3/8 | 3/8-24 | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
CCF-1-S | 1.000 | .625 | .4375 | 1 | 1/2 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
CCF-11/8-S | 1.125 | .625 | .4375 | 1 | 1/2 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
CCF-11/4-S | 1.250 | .750 | .500 | 11/4 | 5/8 | 1/2-20 | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
CCF-13/8-S | 1.375 | .750 | .500 | 11/4 | 5/8 | 1/2-20 | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
CCF-11/2-S | 1.500 | .875 | .625 | 11/2 | 3/4 | 5/8-18 | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
CCF-15/8-S | 1.625 | .875 | .625 | 11/2 | 3/4 | 5/8-18 | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
CCF-13/4-S | 1.750 | 1.000 | .750 | 13/4 | 7/8 | 3/4-16 | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
CCF-17/8-S | 1.875 | 1.000 | .750 | 13/4 | 7/8 | 3/4-16 | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
CCF-2-S | 2.000 | 1.250 | .875 | 2 | 1 | 7/8-14 | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
CCF-21/4-S | 2.250 | 1.250 | .875 | 2 | 1 | 7/8-14 | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
CCF-21/2-S | 2.500 | 1.500 | 1.000 | 21/4 | 11/8 | 1-14 | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
CCF-23/4-S | 2.750 | 1.500 | 1.000 | 21/4 | 11/8 | 1-14 | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
CCF-3-S | 3.000 | 1.750 | 1.250 | 21/2 | 11/4 | 11/4-12 | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
CCF-31/4-S | 3.250 | 1.750 | 1.250 | 21/2 | 11/4 | 11/4-12 | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
CCF-31/2-S | 3.500 | 2.000 | 1.375 | 23/4 | 13/8 | 13/8-12 | 11/16 | 1/8 | 1/4 | 4200 | 31625 | 22800 |
CCF4-S | 4.000 | 2.250 | 1.500 | 31/2 | 11/2 | 11/2-12 | 3/4 | 1/8 | 1/4 | 5000 | 44770 | 29985 |
CCF-5-S | 5.000 | 2.750 | 2.000 | 51/16 | 29/16 | 2-12 | 7/8 | 3/16 | 1/4 N.PT. | 5000 | 67950 | 46575 |
CCF-6-S | 6.000 | 3.250 | 2.500 | 6 | 3 | 21/2-12 | 1 | 3/16 | 1/4 N.P.T | 5000 | 80450 | 60000 |
CCF-7-S | 7.000 | 3.750 | 3.000 | 711/16 | 41/8 | 3-12 | 11/4 | 3/16 | 1/4 N.P.T | 5000 | 106930 | 75380 |
CCF-8-S | 8.000 | 4.250 | 3.250 | 81/2 | 41/4 | 31/4-4 | 1/4 N.P.T | 5000 | 144100 | 92200 | ||
CCF-9-S | 9.000 | 4.750 | 3.750 | 91/2 | 43/4 | 31/2-4 | 1/4 N.P.T | 5000 | 183430 | 113260 | ||
CCF-10-S | 10.000 | 5.250 | 4.250 | 10 | 43/4 | 31/2-4 | 1/4 N.P.T | 5000 | 215565 | 131545 | ||
CCF-1/2-N-SB | .500 | .344 | .190 | 1/2 | 1/4 | 10-32 | 15 | 720 | 620 | |||
CCF-1/2-SB | .500 | .375 | .190 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |||
CCF-9/16-SB | .5625 | .375 | .190 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |||
CCF-5/8-N-SB | .625 | .406 | .250 | 5/8 | 5/16 | 1/4-28 | 35 | 1085 | 930 | |||
CCF-5/8-SB | .625 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 | 35 | 1215 | 955 | |||
CCF-11/16-SB | .6875 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 | 35 | 1215 | 955 | |||
CCF-3/4-SB | .750 | .500 | .375 | 7/8 | 3/8 | 3/8-24 | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
CCF-7/8-SB | .875 | .500 | .375 | 7/8 | 3/8 | 3/8-24 | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
CCF-1-SB | 1.000 | .625 | .4375 | 1 | 1/2 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
CCF-11/8-SB | 1.125 | .625 | .4375 | 1 | 1/2 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
CCF-11/4-SB | 1.250 | .750 | .500 | 11/4 | 5/8 | 1/2-20 | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
CCF-13/8-SB | 1.375 | .750 | .500 | 11/4 | 5/8 | 1/2-20 | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
CCF-11/2-SB | 1.500 | .875 | .625 | 11/2 | 3/4 | 5/8-18 | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
CCF-15/8-SB | 1.625 | .875 | .625 | 11/2 | 3/4 | 5/8-18 | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
CCF-13/4-SB | 1.750 | 1.000 | .750 | 13/4 | 7/8 | 3/4-16 | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
CCF-17/8-SB | 1.875 | 1.000 | .750 | 13/4 | 7/8 | 3/4-16 | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
CCF-2-SB | 2.000 | 1.250 | .875 | 2 | 1 | 7/8-14 | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
CCF-21/4-SB | 2.250 | 1.250 | .875 | 2 | 1 | 7/8-14 | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
CCF-21/2-SB | 2.500 | 1.500 | 1.000 | 21/4 | 11/8 | 1-14 | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
CCF-23/4-SB | 2.750 | 1.500 | 1.000 | 21/4 | 11/8 | 1-14 | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
CCF-3-SB | 3.000 | 1.750 | 1.250 | 21/2 | 11/4 | 11/4-12 | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
CCF-31/4-SB | 3.250 | 1.750 | 1.250 | 21/2 | 11/4 | 11/4-12 | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
CCF-31/2-SB | 3.500 | 2.000 | 1.375 | 23/4 | 13/8 | 13/8-12 | 11/16 | 1/8 | 1/4 | 4200 | 31625 | 22800 |
CCF-4-SB | 4.000 | 2.250 | 1.500 | 31/2 | 11/2 | 11/2-12 | 3/4 | 1/8 | 1/4 | 5000 | 44770 | 29985 |
| UNSEALED BRG. NO. | ROLLER DIA (RD) +.000 -001 | ROLLER WIDTH (W) +.000 -.005 | EUSH +.000 -.010 | BUSH. DIA.(BD) ±.001 | STUD L' GTH.(SL) | MIN. THR' DL' GTH. (TL) | FINE THR'DS. | ECC. | LUB. FIT-TING SIZE (F) | RECOM. CLAM PING TORQUE LBS.-IN. | MAX. STATIC CAPACITY LBS. | BASIC DYN. RATING LBS. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
CCFE-1/2-N-S | .500 | .344 | .250 | .250 | 1/2 | 1/4 | 10-32 | .010 | 1/8 | 15 | 720 | 620 |
CCFE-1/2-S | .500 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | 1/8 | 15 | 790 | 680 |
CCFE-9/16-S | .5625 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | 1/8 | 15 | 790 | 680 |
CCFE-5/8-S | .625 | 4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | 1/8 | 35 | 1215 | 955 |
CCFE-11/16-S | 6875 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | 1/8 | 35 | 1215 | 955 |
CCFE-3/4-S | .750 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
CCFE-7/8-S | .875 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
CCFE-1-S | 1.000 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
CCFE-11/8-S | 1.125 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
CCFE-11/4-S | 1.250 | .750 | .625 | .687 | 11/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
CCFE-13/8-S | 1.375 | .750 | .625 | .687 | 11/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
CCFE-11/2-S | 1.500 | .875 | .750 | .875 | 11/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
CCFE-15/8-S | 1.625 | .875 | .750 | .875 | 11/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
CCFE-13/4-S | 1.750 | 1.000 | .875 | 1.000 | 13/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
CCFE-17/8-S | 1.875 | 1.000 | .875 | 1.000 | 13/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
CCFE-2-S | 2.000 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
CCFE-21/4-S | 2.250 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
CCFE-21/2-S | 2.500 | 1.500 | 1.125 | 1.375 | 21/4 | 11/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
CCFE-23/4-S | 2.750 | 1.500 | 1.125 | 1.375 | 21/4 | 11/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
CCFE-3-S | 3.000 | 1.750 | 1.250 | 1.750 | 21/2 | 11/4 | 11/4-12 | .060 | 1/4 | 3450 | 24910 | 15720 |
CCFE-31/4-S | 3.250 | 1.750 | 1.250 | 1.750 | 21/2 | 11/4 | 11/4-12 | .060 | 1/4 | 3450 | 24910 | 15720 |
CCFE-31/2-S | 3.500 | 2.000 | 1.375 | 1.812 | 23/4 | 13/8 | 13/8-12 | .060 | 1/4 | 4200 | 31625 | 22800 |
CCFE-4-S | 4.000 | 2.250 | 2.000 | 2.000 | 31/2 | 11/2 | 11/2-12 | .060 | 1/4 | 5000 | 44770 | 29985 |
CCFE-1/2-N-SB | .500 | .344 | .250 | .250 | 1/2 | 1/4 | 10-32 | .010 | 15 | 720 | 620 | |
CCFE-1/2-SB | .500 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | 15 | 790 | 680 | |
CCFE-9/16-SB | .5625 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | 15 | 790 | 680 | |
CCFE-5/8-SB | .625 | 4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | 35 | 1215 | 955 | |
CCFE-11/16-SB | .6875 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | 35 | 1215 | 955 | |
CCFE-3/4-SB | .750 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
CCFE-7/8-SB | .875 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
CCFE-1-SB | 1.000 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
CCFE-11/8-SB | 1.125 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
CCFE-11/4-SB | 1.250 | .750 | .625 | .687 | 11/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
CCFE-13/8-SB | 1.375 | .750 | .625 | .687 | 11/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
CCFE-11/2-SB | 1.500 | .875 | .750 | .875 | 11/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
CCFE-15/8-SB | 1.625 | .875 | .750 | .875 | 11/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
CCFE-13/4-SB | 1.750 | 1.000 | .875 | 1.000 | 13/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
CCFE-17/8-SB | 1.875 | 1.000 | .875 | 1.000 | 13/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
CCFE-2-SB | 2.000 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
CCFE-21/4-SB | 2.250 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
CCFE-21/2-SB | 2.500 | 1.500 | 1.125 | 1.375 | 21/4 | 11/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
CCFE-23/4-SB | 2.750 | 1.500 | 1.125 | 1.375 | 21/4 | 11/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
CCFE-3-SB | 3.000 | 1.750 | 1.250 | 1.750 | 21/2 | 11/4 | 11/4-12 | .060 | 1/4 | 3450 | 24910 | 15720 |
CCFE-31/4-SB | 3.250 | 1.750 | 1.250 | 1.750 | 21/2 | 11/4 | 11/4-12 | .060 | 1/4 | 3450 | 24910 | 15720 |
CCFE-31/2-SB | 3.500 | 2.000 | 1.375 | 1.812 | 23/4 | 13/8 | 13/8-12 | .060 | 1/4 | 4200 | 31625 | 22800 |
CCFE-4-SB | 4.000 | 2.250 | 2.000 | 2.000 | 31/2 | 11/2 | 11/2-12 | .060 | 1/4 | 5000 | 44770 | 29985 |
| UNSEALED BRG. NO. | SEALED BRG. NO. | ROLLER DIA.(RD) +.000 -.001 | ROLLER WIDTH (W) +.000 -.005 | STUD DIA (SD) +.001 -.000 | STUD L'GTH.(SL) | MIN. THR'D L'GTH. (TL) | FINE THR'DS. | OIL HOLE | LUB. FIT-TING SIZE (F)* | RECOM. CLAM PING TORQUE LBS.-IN. | MAX. STATIC CAPACITY LBS. | BASIC DYN. RATING LBS. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HOLE CENTER (HC) | HOLE DIA (HD) | ||||||||||||
CFH-1/2 | CFH-1/2-S | .500 | .375 | .250 | 5/8 | 1/4 | 1/4-28 | 1/8 | 35 | 1580 | 680 | ||
CFH-9/16 | CFH-9/16-S | .5625 | .375 | .250 | 5/8 | 1/4 | 1/4-28 | 1/8 | 35 | 1580 | 680 | ||
CFH-5/8 | CFH-5/8-S | .625 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 | 1/8 | 90 | 2480 | 955 | ||
CFH-11/16 | CFH-11/16-S | .6875 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 | 1/8 | 90 | 2480 | 955 | ||
CFH-3/4 | CFH-3/4-S | .750 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
CFH-7/8 | CFH-7/8-S | .875 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
CFH-1 | CFH-1-S | 1.000 | .625 | .625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
CFH-11/8 | CFH-11/8-S | 1.125 | .625 | .625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
CFH-11/4 | CFH-11/4-S | 1.250 | .750 | .750 | 11/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
CFH-13/8 | CFH-13/8-S | 1.375 | .750 | .750 | 11/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
CFH-11/2 | CFH-11/2-S | 1.500 | .875 | .875 | 11/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
CFH-15/8 | CFH-15/8-S | 1.625 | .875 | .875 | 11/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
CFH-13/4 | CFH-13/4-S | 1.750 | 1.000 | 1.000 | 13/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
CFH-17/8 | CFH-17/8-S | 1.875 | 1.000 | 1.000 | 13/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
CFH-2 | CFH-2-S | 2.000 | 1.250 | 1.125 | 2 | 1 | 11/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
CFH-21/4 | CFH-21/4-S | 2.250 | 1.250 | 1.125 | 2 | 1 | 11/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
CFH-21/2 | CFH-21/2-S | 2.500 | 1.500 | 1.250 | 21/4 | 11/8 | 11/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
CFH-23/4 | CFH-23/4-S | 2.750 | 1.500 | 1.250 | 21/4 | 11/8 | 11/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
CFH-3 | CFH-3-S | 3.000 | 1.750 | 1.500 | 21/2 | 11/4 | 11/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
CFH-31/4 | CFH-31/4-S | 3.250 | 1.750 | 1.500 | 21/2 | 11/4 | 11/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
CFH-31/2 | CFH-31/2-S | 3.500 | 2.000 | 1.750 | 23/4 | 13/8 | 13/4-12 | 11/16 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
CFH-4 | CFH-4-S | 4.000 | 2.250 | 2.000 | 31/2 | 11/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |
CFH-5-S | 5.000 | 2.750 | 2.500 | 51/16 | 29/16 | 21/2-12 | 7/8 | 3/16 | 1/4N.PT | 5000 | 135900 | 46575 | |
CFH-6-S | 6.000 | 3.250 | 3.000 | 6 | 3 | 3-12 | 1 | 3/16 | 1/4N.PT | 5000 | 160900 | 60000 | |
CFH-7-S | 7.000 | 3.750 | 3.500 | 711/16 | 41/8 | 31/2-4 | 11/4 | 3/16 | 1/4N.PT | 5000 | 213860 | 75380 | |
CFH-1/2-B | CFH-1/2-SB | .500 | .375 | .250 | 5/8 | 1/4 | 1/4-28 | 35 | 1580 | 680 | |||
CFH-9/16-B | CFH-9/16-SB | .5625 | .375 | .250 | 5/8 | 1/4 | 1/4-28 | 35 | 1580 | 680 | |||
CFH-5/8-B | CFH-5/8-SB | .625 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 | 90 | 2480 | 955 | |||
CFH-11/16-B | CFH-11/16-SB | .6875 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 | 90 | 2480 | 955 | |||
CFH-3/4-B | CFH-3/4-SB | .750 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
CFH-7/8-B | CFH-7/8-SB | .875 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
CFH-1-B | CFH-1-SB | 1.000 | .625 | .625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
CFH-11/8-B | CFH-11/8-SB | 1.125 | .625 | .625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
CFH-11/4-B | CFH-11/4-SB | 1.250 | .750 | .750 | 11/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
CFH-13/8-B | CFH-13/8-SB | 1.375 | .750 | .750 | 11/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
CFH-11/2-B | CFH-11/2-SB | 1.500 | .875 | .875 | 11/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
CFH-15/8-B | CFH-15/8-SB | 1.625 | .875 | .875 | 11/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
CFH-13/4-B | CFH-13/4-SB | 1.750 | 1.000 | 1.000 | 13/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
CFH-17/8-B | CFH-17/8-SB | 1.875 | 1.000 | 1.000 | 13/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
CFH-2-B | CFH-2-SB | 2.000 | 1.250 | 1.125 | 2 | 1 | 11/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
CFH-21/4-B | CFH-21/4-SB | 2.250 | 1.250 | 1.125 | 2 | 1 | 11/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
CFH-21/2-B | CFH-21/2-SB | 2.500 | 1.500 | 1.250 | 21/4 | 11/8 | 11/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
CFH-23/4-B | CFH-23/4-SB | 2.750 | 1.500 | 1.250 | 21/4 | 11/8 | 11/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
CFH-3-B | CFH-3-SB | 3.000 | 1.750 | 1.500 | 21/2 | 11/4 | 11/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
CFH-31/4-B | CFH-31/4-SB | 3.250 | 1.750 | 1.500 | 21/2 | 11/4 | 11/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
CFH-31/2-B | CFH-31/2-SB | 3.500 | 2.000 | 1.750 | 23/4 | 13/8 | 13/4-12 | 11/16 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
CFH-4-B | CFH-4-SB | 4.000 | 2.250 | 2.000 | 31/2 | 11/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |

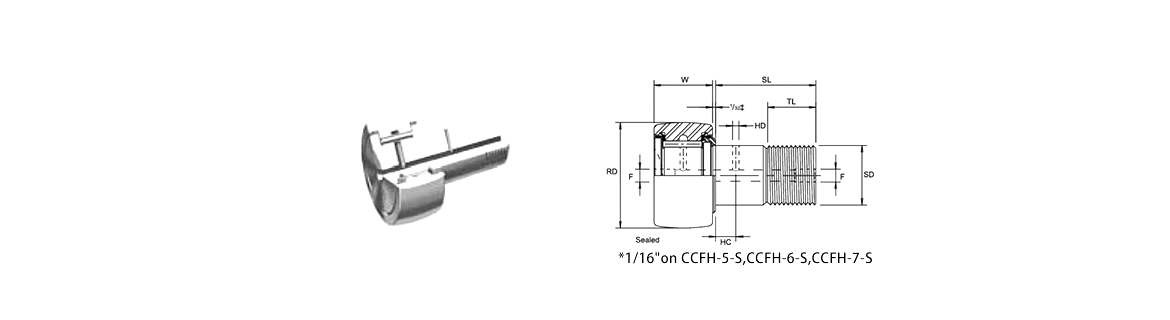

| UNSEALED BRG. NO. | ROLLER DIA.(RD) +.000 -.001 | ROLLER WIDTH (W) +.000 -.005 | STUD DIA (SD) +.001 -.000 | STUD L'GTH.(SL) | MIN. THR'D L'GTH. (TL) | FINE THR'DS. | OIL HOLE | LUB. FIT-TING SIZE (F)* | RECOM. CLAM PING TORQUE LBS.-IN. | MAX. STATIC CAPACITY LBS. | BASIC DYN. RATING LBS. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HOLE CENTER (HC) | HOLE DIA (HD) | |||||||||||
CCFH-1/2-S | .500 | .375 | .250 | 5/8 | 1/4 | 1/4-28 | 1/8 | 35 | 1580 | 680 | ||
CCFH-9/16-S | .5625 | .375 | .250 | 5/8 | 1/4 | 1/4-28 | 1/8 | 35 | 1580 | 680 | ||
CCFH-5/8-S | .625 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 | 1/8 | 90 | 2480 | 955 | ||
CCFH-11/16-S | .6875 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 | 1/8 | 90 | 2480 | 955 | ||
CCFH-3/4-S | .750 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
CCFH-7/8-S | .875 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
CCFH-1-S | 1.000 | .625 | .625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
CCFH-11/8-S | 1.125 | .625 | .625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
CCFH-11/4-S | 1.250 | .750 | .750 | 11/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
CCFH-13/8-S | 1.375 | .750 | .750 | 11/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
CCFH-11/2-S | 1.500 | .875 | .875 | 11/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
CCFH-15/8-S | 1.625 | .875 | .875 | 11/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
CCFH-13/4-S | 1.750 | 1.000 | 1.000 | 13/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
CCFH-17/8-S | 1.875 | 1.000 | 1.000 | 13/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
CCFH-2-S | 2.000 | 1.250 | 1.125 | 2 | 1 | 11/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
CCFH-21/4-S | 2.250 | 1.250 | 1.125 | 2 | 1 | 11/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
CCFH-21/2-S | 2.500 | 1.500 | 1.250 | 21/4 | 11/8 | 11/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
CCFH-23/4-S | 2.750 | 1.500 | 1.250 | 21/4 | 11/8 | 11/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
CCFH-3-S | 3.000 | 1.750 | 1.500 | 21/2 | 11/4 | 11/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
CCFH-31/4-S | 3.250 | 1.750 | 1.500 | 21/2 | 11/4 | 11/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
CCFH-31/2-S | 3.500 | 2.000 | 1.750 | 23/4 | 13/8 | 13/4-12 | 11/16 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
CCFH-4-S | 4.000 | 2.250 | 2.000 | 31/2 | 11/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |
CCFH-5-S | 5.000 | 2.750 | 2.500 | 51/16 | 29/16 | 21/2-12 | 7/8 | 3/16 | 1/4 N.P.T | 5000 | 135900 | 46575 |
CCFH-6-S | 6.000 | 3.250 | 3.000 | 6 | 3 | 3-12 | 1 | 3/16 | 1/4 N.PT | 5000 | 160900 | 60000 |
CCFH-7-S | 7.000 | 3.750 | 3.500 | 711/16 | 41/8 | 31/2-4 | 11/4 | 3/16 | 1/4 N.P.T | 5000 | 213860 | 75380 |
CCFH-1/2-SB | .500 | .375 | .250 | 5/8 | 1/4 | 1/4-28 | 35 | 1580 | 680 | |||
CCFH-9/16-SB | .5625 | .375 | .250 | 5/8 | 1/4 | 1/4-28 | 35 | 1580 | 680 | |||
CCFH-5/8-SB | .625 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 | 90 | 2480 | 955 | |||
CCFH-11/16-SB | .6875 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 | 90 | 2480 | 955 | |||
CCFH-3/4-SB | .750 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
CCFH-7/8-SB | .875 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
CCFH-1-SB | 1.000 | .625 | .625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
CCFH-11/8-SB | 1.125 | .625 | .625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
CCFH-11/4-SB | 1.250 | .750 | .750 | 11/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
CCFH-13/8-SB | 1.375 | .750 | .750 | 11/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
CCFH-11/2-SB | 1.500 | .875 | .875 | 11/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
CCFH-15/8-SB | 1.625 | .875 | .875 | 11/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
CCFH-13/4-SB | 1.750 | 1.000 | 1.000 | 13/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
CCFH-17/8-SB | 1.875 | 1.000 | 1.000 | 13/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
CCFH-2-SB | 2.000 | 1.250 | 1.125 | 2 | 1 | 11/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
CCFH-21/4-SB | 2.250 | 1.250 | 1.125 | 2 | 1 | 11/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
CCFH-21/2-SB | 2.500 | 1.500 | 1.250 | 21/4 | 11/8 | 11/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
CCFH-23/4-SB | 2.750 | 1.500 | 1.250 | 21/4 | 11/8 | 11/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
CCFH-3-SB | 3.000 | 1.750 | 1.500 | 21/2 | 11/4 | 11/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
CCFH-31/4-SB | 3.250 | 1.750 | 1.500 | 21/2 | 11/4 | 11/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
CCFH-31/2-SB | 3.500 | 2.000 | 1.750 | 23/4 | 13/8 | 13/4-12 | 11/16 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
CCFH-4-SB | 4.000 | 2.250 | 2.000 | 31/2 | 11/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |
