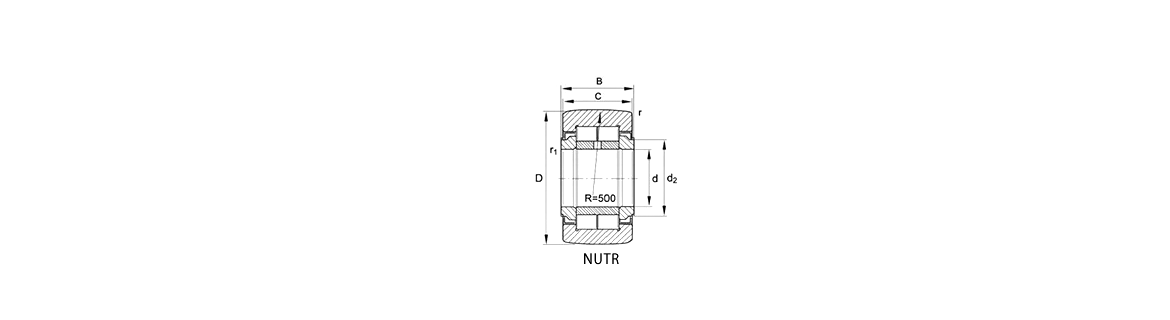

NUTR
NUTR
Bearing
Designation		Mass
g		Dimensions(mm)Basic load ratingsFatigue limit load
Curw N		Speed nDG
min-1
DdBCd₂r
min.		r1
min.		dyn. Crw
N		stat. Corw
N		dyn. Frper
N		stat. For per
N

NUTR15

99

35

15

19

18

20

0.6

0.3

15000

16800

8600

16800

2220

6500

PWTR15-2RS

99

35

15

19

18

20

0.6

0.3

11600

11300

9400

11300

1780

6000

NUTR17

147

40

17

21

20

22

1

0.5

18400

22600

13100

22600

2900

5500

PWTR17-2RS

147

40

17

21

20

22

1

0.5

13200

13800

13800

13800

2200

5000

NUTR1542

158

42

15

19

18

20

0.6

0.3

18100

21900

21900

21900

2900

6500

PWTR1542-2RS

158

42

15

19

18

20

0.6

0.3

13500

14100

14100

14100

2230

6000

NUTR1747

220

47

17

21

20

22

1

0.5

21300

28000

28000

28000

3600

5500

PWTR1747-2RS

220

47

17

21

20

22

1

0.5

14800

16400

16400

16400

2600

5000

NUTR20

245

47

20

25

24

27

1

0.5

28000

35000

16400

33000

4400

4200

PWTR20-2RS

245

47

20

25

24

27

1

0.5

232000

25500

18300

25500

3600

3800

NUTR2052

321

52

20

25

24

27

1

0.5

315000

41000

38500

41000

5200

4200

NUTR2052-2RS

321

52

20

25

24

27

1

0.5

255000

29500

29500

29500

4150

3800

NUTR25

281

52

25

25

24

31

1

0.5

29000

37500

17300

34500

4700

4200

NUTR25-2RS

281

52

25

25

24

31

1

0.5

242000

28000

19300

28000

3900

3800

NUTR2526

450

62

25

25

24

31

1

0.5

355000

50000

50000

50000

6300

4200

PWTR2526-2RS

450

62

25

25

24

31

1

0.5

29000

36000

36000

36000

5000

3800

NUTR30

465

62

30

29

28

38

1

0.5

40000

50000

23500

46500

6300

2600

PWTR30-2RS

465

62

30

29

28

38

1

0.5

35000

395000

25500

39500

5400

2200

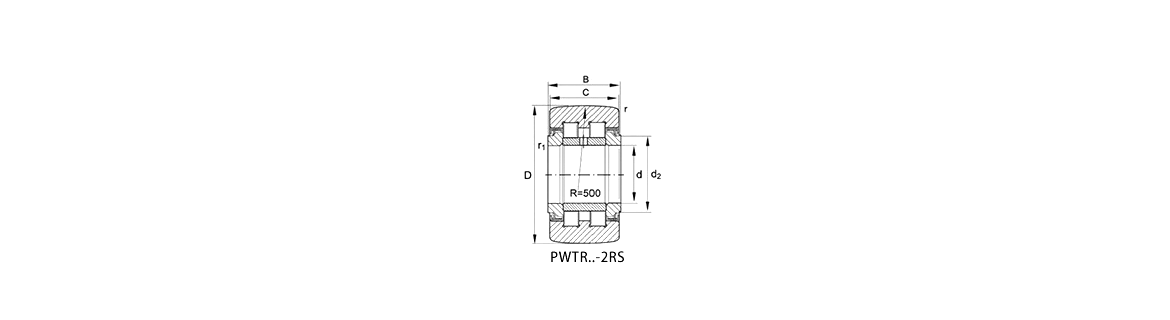

PWTR..-2RS
PWTR..-2RS
Bearing
Designation		Mass
g		Dimensions(mm)Basic load ratingsFatigue limit load
Curw N		Speed nDG
min-1
DdBCd₂r
min.		r1
min.		dyn. Crw
N		stat. Corw
N		dyn. Frper
N		stat. For per
N

NUTR3072

697

72

30

29

28

38

1

0.5

47500

64000

64000

64000

8100

2600

PWTR3072-2RS

697

72

30

29

28

38

1

0.5

41000

49000

49000

49000

6700

2200

NUTR35

630

72

35

29

28

44

1.1

0.6

44500

60000

32000

60000

7600

2100

PWTR35-2RS

630

72

35

29

28

44

1.1

0.6

38500

46500

34500

46500

6300

1800

NUTR3580

836

80

35

29

28

44

1.1

0.6

51000

72000

72000

72000

9100

2100

PWTR3580-2RS

836

80

35

29

28

44

1.1

0.6

43500

55000

55000

55000

7500

1800

NUTR40

816

80

40

32

30

50.5

1.1

0.6

55000

75000

30500

60000

9400

1600

PWTR40-2RS

816

80

40

32

30

50.5

1.1

0.6

44500

53000

35000

53000

7100

1500

NUTR45

883

85

45

32

30

55.2

1.1

0.6

56000

78000

31500

61000

9700

1400

PWTR45-2RS

883

85

45

32

30

55.2

1.1

0.6

45000

55000

36000

55000

7400

1300

NUTR4090

1129

90

40

32

30

50.5

1.1

0.6

66000

95000

84000

95000

11900

1600

PWTR4090-2RS

1129

90

40

32

30

50.5

1.1

0.6

52000

66000

66000

66000

8800

1500

NUTR50

950

90

50

32

30

59.8

1.1

0.6

57000

81000

32000

62000

10100

1300

PWTR50-2RS

950

90

50

32

30

59.8

1.1

0.6

45500

57000

37000

57000

7700

1100

NUTR45100

1396

100

45

32

30

55.2

1.1

0.6

71000

10700

106000

107000

13300

1400

PWTR45100-2RS

1396

100

45

32

30

55.2

1.1

0.6

56000

74000

74000

74000

9900

1300

NUTR50110

1690

110

50

32

30

59.8

1.1

0.6

76000

120000

120000

120000

14900

1300

PWTR50110-2RS

1690

110

50

32

30

59.8

1.1

0.6

59000

82000

82000

82000

11000

1100
