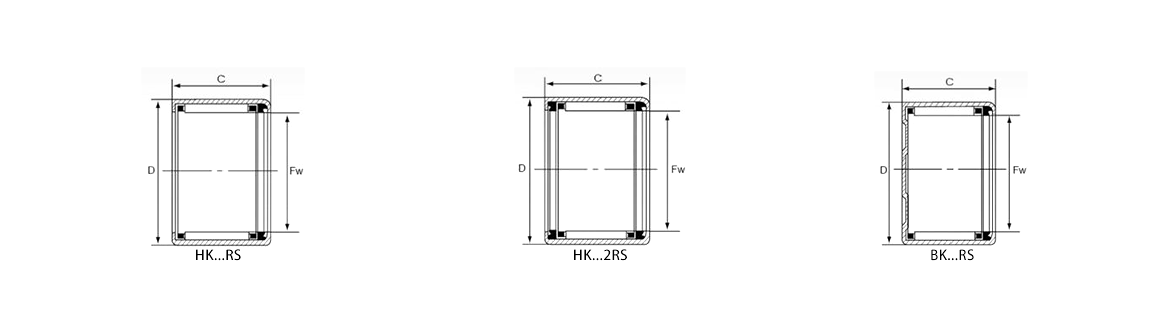

| Shaft Diameter (mm) | Bearing Designation | Mass Approx | Boundary Dimensions | Basic Load Rating | Limiting Speed | |||
|---|---|---|---|---|---|---|---|---|
| Current Code | Fw | D | C | Dynamic | Static | Oil | ||
| g | mm | N | rpm | |||||
8 | HK0810RS | 2.9 | 8 | 12 | 10 | 2250 | 2100 | 19000 |
HK08122RS | 3.5 | 8 | 12 | 12 | 2250 | 2100 | 19000 | |
9 | HK09X13X12 RS | 4 | 9 | 13 | 12 | 3800 | 4300 | 19000 |
10 | HK1012 RS | 4.2 | 10 | 14 | 12 | 4100 | 5000 | 19000 |
HK10142RS | 5.2 | 10 | 14 | 14 | 4100 | 5000 | 15000 | |
12 | HK1214 RS | 10.7 | 12 | 18 | 14 | 6100 | 7000 | 15000 |
HK12162RS | 11.5 | 12 | 18 | 16 | 6100 | 7000 | 12000 | |
13 | HK13X19X12RS | 8.9 | 13 | 19 | 12 | 6800 | 7580 | 12000 |
14 | HK1414 RS | 12 | 14 | 20 | 14 | 6100 | 7500 | 13000 |
HK14162RS | 14 | 14 | 20 | 16 | 6100 | 7500 | 11000 | |
BK1414 RS | 14.1 | 14 | 20 | 14 | 6100 | 7500 | 11000 | |
15 | HK1514 RS | 12.6 | 15 | 21 | 14 | 6800 | 8800 | 11000 |
HK15162RS | 14.3 | 15 | 21 | 16 | 6800 | 8800 | 10000 | |
BK1514 RS | 14.4 | 15 | 21 | 14 | 6800 | 8800 | 10000 | |
HK1518 RS | 16 | 15 | 21 | 18 | 9500 | 11400 | 10000 | |
HK15202RS | 18 | 15 | 21 | 20 | 9500 | 11400 | 10000 | |
16 | HK1614 RS | 15.1 | 16 | 22 | 14 | 7200 | 9200 | 10000 |
HK16162RS | 15.1 | 16 | 22 | 16 | 7200 | 9200 | 10000 | |
BK1614 RS | 15.3 | 16 | 22 | 14 | 7200 | 9200 | 10000 | |
HK16202RS | 16.8 | 16 | 22 | 20 | 9900 | 12300 | 10000 | |
HK16252RS | 16 | 22 | 25 | 9900 | 12300 | 10000 | ||
17 | HK17X25X14 RS | 17.7 | 17 | 25 | 14 | 8000 | 9800 | 10000 |
HK17X25X15.5 RS | 20 | 17 | 25 | 15.5 | 9320 | 10400 | 13000 | |
HK17X25X18 RS | 23.5 | 17 | 25 | 18 | 10500 | 12600 | 13000 | |
HK17X25X20 RS | 26.2 | 17 | 25 | 20 | 11600 | 13200 | 13000 | |
18 | HK1814 RS | 15.1 | 18 | 24 | 14 | 7800 | 9900 | 13000 |
HK18162RS | 17 | 18 | 24 | 16 | 7800 | 9900 | 9200 | |
20 | HK2012RS | 11.7 | 20 | 26 | 12 | 9500 | 11900 | 9200 |
HK20162RS | 18.8 | 20 | 26 | 16 | 8000 | 10100 | 9000 | |
HK2018 RS | 21.4 | 20 | 26 | 18 | 12700 | 20100 | 8200 | |
HK20202RS | 23.5 | 20 | 26 | 20 | 12700 | 20100 | 7800 | |
BK2018 RS | 24.4 | 20 | 26 | 18 | 12700 | 20100 | 7800 | |
HK20X29X18 RS | 28.8 | 20 | 29 | 18 | 8700 | 9980 | 7800 | |
22 | HK2212 RS | 14 | 22 | 28 | 12 | 8310 | 10000 | 9000 |
HK2214 RS | 18.3 | 22 | 28 | 14 | 9000 | 12400 | 7800 | |
HK22162RS | 20.3 | 22 | 28 | 16 | 9000 | 12400 | 7800 | |
HK2218 RS | 23.5 | 22 | 28 | 18 | 10400 | 20100 | 7800 | |
HK22202RS | 25.5 | 22 | 28 | 20 | 10400 | 20100 | 7800 | |
25 | HK25162RS | 27.3 | 25 | 32 | 16 | 9800 | 13200 | 6900 |
HK2518 RS | 31 | 25 | 32 | 18 | 13600 | 20000 | 6900 | |
HK25202RS | 33.1 | 25 | 32 | 20 | 13600 | 20000 | 6900 | |
BK2518 RS | 35.3 | 25 | 32 | 18 | 13600 | 20000 | 6900 | |
HK25242RS | 39.7 | 25 | 32 | 24 | 17900 | 30000 | 6900 | |
HK25302RS | 47.3 | 25 | 32 | 30 | 24500 | 43000 | 6900 | |
28 | HK28202RS | 36.9 | 28 | 35 | 20 | 11400 | 22500 | 5300 |
30 | HK30162RS | 28.5 | 30 | 37 | 16 | 10100 | 16200 | 5300 |
HK3018 RS | 36.6 | 30 | 37 | 18 | 16200 | 26000 | 5300 | |
HK30202RS | 39.1 | 30 | 37 | 20 | 16200 | 26000 | 5300 | |
HK30242RS | 49.7 | 30 | 37 | 24 | 21000 | 38500 | 5300 | |
35 | HK35162RS | 36.4 | 35 | 42 | 16 | 10100 | 20300 | 4900 |
HK3518 RS | 37.4 | 35 | 42 | 18 | 16700 | 30500 | 4900 | |
HK35202RS | 41.1 | 35 | 42 | 20 | 16700 | 30500 | 4900 | |
40 | HK40162RS | 41.2 | 40 | 47 | 16 | 11000 | 21300 | 4200 |
HK4018 RS | 47.3 | 40 | 47 | 18 | 19000 | 30500 | 4200 | |
HK40202RS | 50.2 | 40 | 47 | 20 | 19000 | 30500 | 4200 | |
45 | HK4518 RS | 54.2 | 45 | 52 | 18 | 20300 | 41000 | 3800 |
HK45202RS | 57.4 | 45 | 52 | 20 | 20300 | 41000 | 3800 | |
50 | HK5022 RS | 77.2 | 50 | 58 | 24 | 30000 | 61000 | 3200 |
HK50242RS | 84 | 50 | 58 | 24 | 30000 | 61000 | 3200 | |
