SL0450..PP | SL04..PP-Cylindrical Roller Bearing-Changzhou Shine Bearing Co., Ltd.-Changzhou Shine Bearing Co., Ltd.

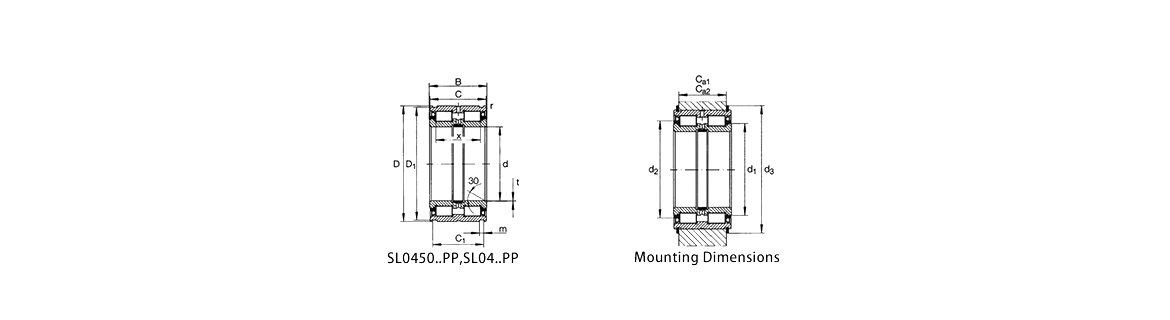

SL0450..PP | SL04..PP

Shaft Diameter (mm)	Code	Mass Approx kg	Dimensions (mm)										Basic Load Rating		Pu kN	nG r/min	Mounting Dimensions (mm)					Stop ring WRE'	Fixed ring DIN 471¹	Shaft Diameter (mm)
Shaft Diameter (mm)	Code	Mass Approx kg	d	D	B	C	C1 +0.2	D1	m	r/min.	t	X	C kN	Co kN	Pu kN	nG r/min	Ca12) -0.2	Ca23) -0.2	d1	d2	d3²	Stop ring WRE'	Fixed ring DIN 471¹	Shaft Diameter (mm)
20	SL045004 PP	0.2	20	42	30	29	24.7	39.8	1.8	0.3	0.5	22.5	40.5	49	7.2	4000	21.5	21	31	34	47	WRE 42	42x1.75	20
25	SL045005 PP	0.24	25	47	30	29	24.7	44.8	1.8	0.3	0.5	22.5	44.5	58	7.9	3600	21.5	21	35.5	39	52	WRE 47	47x1.75	25
30	SL045006 PP	0.37	30	55	34	33	28.2	52.8	2.1	0.3	0.5	25.5	50	67	9.2	3000	25	24	41	44	60	WRE 55	55x2	30
35	SL045007 PP	0.48	35	62	36	35	30.2	59.8	2.1	0.3	0.5	27.5	63	88	11.8	2600	27	26	46.5	50	67	WRE 62	62x2	35
40	SL045008 PP	0.56	40	68	38	37	32.2	65.8	2.7	0.6	0.8	28.5	76	103	14.7	2400	28	27	51.5	55	75	WRE 68	68x2.5	40
45	SL045009 PP	0.7	45	75	40	39	34.2	72.8	2.7	0.6	0.8	30.5	92	130	18.1	2200	30	29	57.5	61	82	WRE 75	75x2.5	45
50	SL045010 PP	0.76	50	80	40	39	34.2	77.8	2.7	0.6	0.8	30.5	97	142	19.8	2000	30	29	62	66	87	WRE 80	80x2.5	50
55	SL045011 PP	1.18	55	90	46	45	40.2	87.4	3.2	0.6	1	36	115	175	24	1800	35	34	69	73	99	WRE 90	90x3	55
60	SL045012 PP	1.26	60	95	46	45	40.2	92.4	3.2	0.6	1	36	120	189	26	1700	35	34	74	79	104	WRE 95	95x3	60
65	SL045013 PP	1.33	65	100	46	45	40.2	97.4	3.2	0.6	1	36	125	203	28	1600	35	34	79	84	109	WRE 100	100x3	65
70	SL045014 PP	1.87	70	110	54	53	48.2	107.1	4.2	0.6	1	42	168	265	35	1400	43	40	85	91	119	WRE 110	110x4	70
75	SL045015 PP	1.96	75	115	54	53	48.2	112.1	4.2	0.6	1	42	194	300	39.5	1400	43	40	90	97	124	WRE 115	115x4	75
80	SL045016 PP	2.71	80	125	60	59	54.2	122.1	4.2	0.6	1.5	48	203	325	42.5	1300	49	46	97.5	105	137	WRE125	125x4	80
85	SL045017 PP	2.83	85	130	60	59	54.2	127.1	4.2	0.6	1.5	48	211	350	45	1200	49	46	104.5	112	142	WRE 130	130x4	85
90	SL045018 PP	3.71	90	140	67	66	59.2	137	4.2	0.6	1.5	54	305	510	62	1100	54	51	109.5	118	152	WRE140	140x4	90
95	SL045019 PP	3.88	95	145	67	66	59.2	142	4.2	0.6	1.5	54	315	530	64	1100	54	51	114	122	157	WRE 145	145x4	95
100	SL045020 PP	3.95	100	150	67	66	59.2	147	4.2	0.6	1.5	54	330	550	66	1000	54	51	118	128	162	WRE 150	150x4	100
110	SL045022 PP	6.57	110	170	80	79	70.2	167	4.2	0.6	1.8	64	395	680	78	900	65	62	132	143	182	WRE 170	170x4	110
120	SL045024 PP	7.04	120	180	80	79	71.2	176	4.2	0.6	1.8	64	410	740	83	900	65	63	141.5	153	196	WRE180	180x4	120
130	SL045026 PP	10.5	130	200	95	94	83.2	196	4.2	0.6	1.8	77	540	960	105	800	77	75	157	170	216	WRE 200	200x4	130
130	SL04130 PP	7.5	130	190	80	79	71.2	186	4.2	0.6	1.8	64	430	790	87	800	65	63	151	160	206	WRE 190	190x4	130
140	SL045028 PP	111	140	210	95	94	83.2	206	5.2	0.6	1.8	77	610	1100	118	750	77	73	166	181	226	WRE210	210x5	140
140	SL04140 PP	8	140	200	80	79	71.2	196	4.2	0.6	1.8	64	445	840	91	750	65	63	160.5	170	216	WRE 200	200x4	140
150	SL045030 PP	13.3	150	225	100	99	87.2	221	5.2	0.6	2	80	710	1260	131	700	81	77	176	192	245	WRE225	225x5	150
150	SL04150 PP	8.4	150	210	80	79	71.2	206	5.2	0.6	1.8	64	465	920	98	700	65	61	175	185	226	WRE 210	210x5	150
160	SL045032 PP	16.6	160	240	109	108	95.2	236	5.2	0.6	2	89	740	1360	140	650	89	85	189.5	207	260	WRE 240	240x5	160
160	SL04160 PP	8.8	160	220	80	79	71.2	216	5.2	0.6	1.8	64	480	970	101	700	65	61	184.5	196	236	WRE220	220x5	160
170	SL045034 PP	22.6	170	260	122	121	107.2	254	5.2	0.6	2	100	960	1750	174	600	99	97	201	220	282	WRE260	260x5	170
170	SL04170 PP	9.3	170	230	80	79	71.2	226	5.2	0.6	1.8	64	490	1030	105	650	65	61	194.5	206	250	WRE230	230x5	170
180	SL045036 PP	30.1	180	280	136	135	118.2	274	5.2	0.6	2	112	1140	2130	205	550	110	108	218.5	239	302	WRE280	280x5	180
180	SL04180 PP	9.8	180	240	80	79	71.2	236	5.2	0.6	1.8	64	500	1080	110	600	65	61	203.5	216	260	WRE 240	240x5	180
190	SL045038 PP	31.5	190	290	136	135	118.2	284	5.2	0.6	2	112	1160	2210	211	550	110	108	226	248	312	WRE290	290x5	190
190	SL04190 PP	12.7	190	260	80	79	73.2	254	5.2	0.6	1.8	64	520	1130	113	550	65	63	218	231	282	WRE260	260x5	190
200	SL045040 PP	40.8	200	310	150	149	128.2	304	6.3	0.6	2	126	1350	2600	245	500	120	116	243.5	267	336	WRE 310	310x6	200
200	SL04200 PP	13.2	200	270	80	79	73.2	264	5.2	0.6	1.8	64	540	1210	119	550	65	63	2275	241	292	WRE 270	270x5	200
220	SL045044 PP	52.5	220	340	160	159	138.2	334	6.3	1	2	132	1570	3050	280	480	130	126	260.5	286	366	WRE 340	340x6	220
220	SL04220 PP	19.5	220	300	95	94	83.2	294	5.2	1	2	72	700	1550	150	480	75	73	249	264	322	WRE 300	300x5	220
240	SL045048 PP	56	240	360	160	159	138.2	354	6.3	1	2	132	1630	3300	295	440	130	126	279.5	305	386	WRE 360	360x6	240
240	SL04240 PP	21	240	320	95	94	83.2	314	6.3	1	2	72	740	1700	160	480	75	71	272	287	346	WRE320	320x6	240
260	SL045052 PP	84.5	260	400	190	189	162.2	394	6.3	1.1	3	150	2380	4700	405	400	154	150	305.5	336	426	WRE400	400x6	260
260	SL04260 PP	22.5	260	340	95	94	83.2	334	6.3	1	3	75	840	1990	182	440	75	71	293	310	366	WRE340	340x6	260
280	SL045056 PP	90	280	420	190	189	163.2	413	7.3	1.1	3	150	2600	5200	440	380	154	149	321.5	354	453	WRE 420	420x7	280
300	SL045060 PP	126	300	460	218	216	185.2	453	7.3	1.1	3	170	3000	5800	480	340	176	171	347.5	375	493	WRE460	460x7	300
300	SL04300 PP	25.5	300	380	95	94	83.2	374	6.3	1	3	75	900	2250	199	380	75	71	328.5	346	406	WRE380	380x6	300
