Series | Description |
HF | Drawn Cup Roller Clutch with Steel Springs |
HF...KF | Drawn Cup Roller Clutch with Plastic Springs |
HF..R | Drawn Cup Roller Clutch with Steel Springs and Partially Knurled Outer Ring |
HF...KFR | Drawn Cup RollerClutch with Plastic Springs and Partially Knurled Outer Ring |
HFL | Drawn Cup Roller Clutch with Bearing Assemblies with Steel Springs,plain or Rolling Bearings |
HFL...KF | Drawn Cup RollerClutch and Bearing Assemblies with Plastic Springs,plain or Rolling Bearings |
HFL..R | Drawn Cup Roller Clutch and Plain Bearing Assemblies with SteelSprings,partially Knurled Outer Ring |
HFL...KFR | Drawn Cup Roller Clutch and Plain Bearing Assemblies with Plastic Springs,partially Knurled Outer Ring |
HFLK | metabolic configuration |

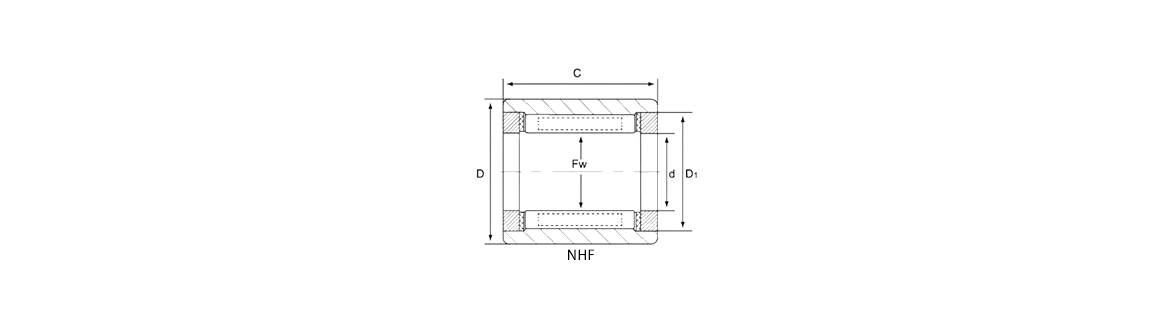

| Shaft Diameter (mm) | Bearing Designation | Mass Approx | Boundary Dimensions | Pemissible Torque Md | ||||
|---|---|---|---|---|---|---|---|---|
| d | D+.020 | (D) | D.20 | |||||
| g | mm | N.m | ||||||
4 | NHF04 | 3.4 | 4 | +0.050 +0.020 | 10 | 8.4 | 9 | 0.29 |
6 | NHF06 | 4.7 | 6 | +0.055 +0.020 | 12 | 10.4 | 10 | 0.69 |
8 | NHF08 | 11 | 8 | +0.055 +0.020 | 16 | 13.5 | 13 | 2.06 |
10 | NHF10 | 14 | 10+0020 | 18 | 15.5 | 14 | 3.14 | |
12 | NHF12 | 18 | 12+0.025 | 20 | 17.5 | 15 | 4.61 | |
