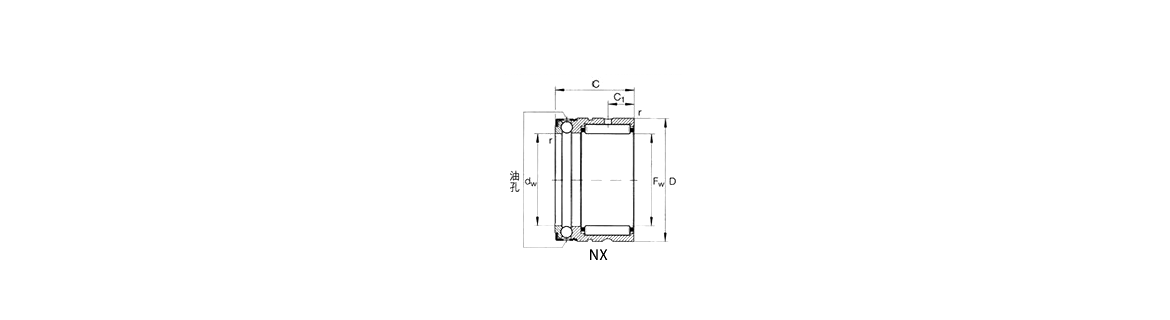

| Shaft Diameter (mm) | Code | Boundary Dimensions | BasicLoad Rating | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suitable oil lubrication | Applicable grease lubrication | Mass g | Fw | D | C ±0.25 | C1 | dw E8 | min. | Radial C kN | Co kN | Axial direction C kN | Co kN | |
7 | NX7 TN | NX7ZTN | 14 | 7 | 14 | 18 | 4.7 | 7 | 0.3 | 2.85 | 2.65 | 3.15 | 4.3 |
10 | NX 10 | NX 10Z | 25 | 10 | 19 | 18 | 4.7 | 10 | 0.3 | 4.45 | 3.7 | 4.6 | 7.2 |
12 | NX 12 | NX 12Z | 28 | 12 | 21 | 18 | 4.7 | 12 | 0.3 | 4.8 | 4.3 | 4.85 | 8.2 |
15 | NX 15 | NX 15Z | 48 | 15 | 24 | 28 | 8 | 15 | 0.3 | 10.7 | 12.7 | 5.6 | 10.4 |
17 | NX 17 | NX 17Z | 53 | 17 | 26 | 28 | 8 | 17 | 0.3 | 11.9 | 15 | 5.8 | 11.5 |
20 | NX 20 | NX 20Z | 68 | 20 | 30 | 28 | 8 | 20 | 0.3 | 13 | 17.5 | 7 | 14.7 |
25 | NX 25 | NX 25Z | 115 | 25 | 37 | 30 | 8 | 25 | 0.3 | 14.9 | 22.4 | 11.1 | 24.3 |
30 | NX 30 | NX 30Z | 130 | 30 | 42 | 30 | 10 | 30 | 0.3 | 22.6 | 36 | 11.7 | 28 |
35 | NX 35 | NX 35Z | 160 | 35 | 47 | 30 | 10 | 35 | 0.3 | 24.3 | 41.5 | 12.4 | 32.5 |

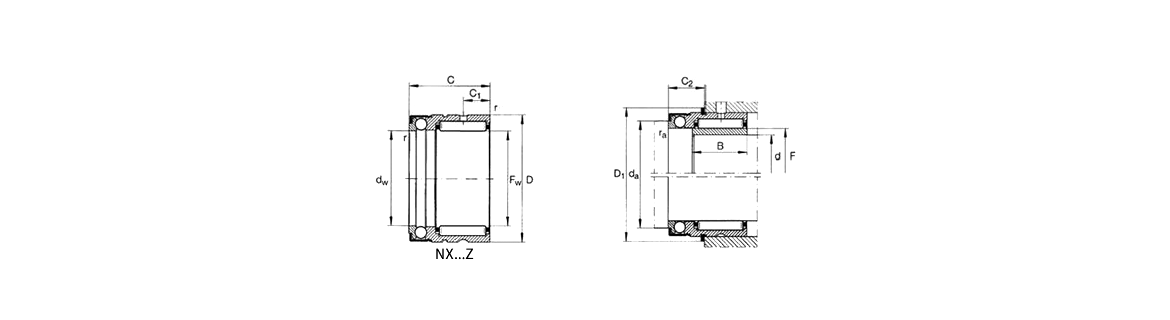

| Fatigue Load | nG r/min | Mounting Dimensions | d IFIB | Applicable stop ring | Shaft Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|
| Radial Pu kN | Axial direction Pu kN | C2 -0.5 | D1 | da | ra max. | ||||
0.32 | 0.159 | 15000 | 10 | 16.5 | 9.6 | 0.3 | - | WR 14,SW 14 | 7 |
0.52 | 0.265 | 11000 | 10 | 21.9 | 14.6 | 0.3 | IR 6x10x10 | WR 19,SW 19 | 10 |
0.61 | 0.305 | 9500 | 10 | 23.7 | 16.6 | 0.3 | IR 8x12x10 | WR 21,SW21 | 12 |
1.76 | 0.385 | 8000 | 12.2 | 26.5 | 19 | 0.3 | IR 12x15x16 | WR 24,SW 24 | 15 |
2.08 | 0.425 | 7500 | 12.2 | 28.5 | 21 | 0.3 | IR 14x17x17 | WR 26,SW26 | 17 |
2.43 | 0.54 | 6500 | 12.2 | 33.6 | 25 | 0.3 | IR 17x20x16 | WR 30,SW 30 | 20 |
31 | 0.9 | 4900 | 14.2 | 40.4 | 31.6 | 0.3 | IR 20x25x16 | WR 37,SW 37 | 25 |
4.65 | 1.04 | 4300 | 14.2 | 45.1 | 36.5 | 0.3 | IR 25x30x20 | WR 42,SW 42 | 30 |
5.4 | 1.2 | 3700 | 14.2 | 50.1 | 40.5 | 0.3 | IR 30x35x20 | WR 47,SW47 | 35 |
