AXK-Thrust Bearing with Flat Seat-Changzhou Shine Bearing Co., Ltd.-Changzhou Shine Bearing Co., Ltd.

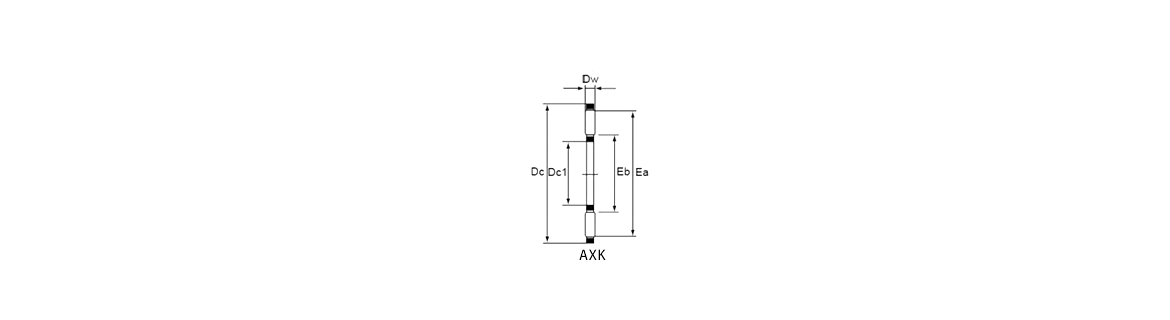

AXK

Shaft Diameter (mm)	Thrust NeedleRoller and Cage Assemblies		Thrust bearing washer
Shaft Diameter (mm)	Code	Mass g	Bearing Washer	Mass g	Shaft Ring	Seat Ring	Axial Bearing Washer	Mass g
4	AXK 0414TN	0.7	AS 0414	1			一	一
5	AXK 0515TN	0.8	AS 0515	1			一
6	AXK 0619TN	1	AS 0619	2	LS0619			4
8	AXK 0821TN	2	AS 0821	2	LS0821			4
10	AXK 1024	3	AS 1024	3	LS1024			7
12	AXK 1226	3	AS 1226	3	LS1226			8
15	AXK 1528	4	AS 1528	3	LS 1528	GS 81102	WS 81102	9
17	AXK 1730	4	AS 1730	4	LS1730	GS81103	WS 81103	9
20	AXK 2035	5	AS 2035	5	LS 2035	GS81104	WS 81104	13
25	AXK 2542	7	AS 2542	7	LS 2542	GS 81105	WS 81105	19
30	AXK 3047	8	AS 3047	8	LS3047	GS81106	WS 81106	22
35	AXK 3552	10	AS 3552	9	LS3552	GS 81107	WS 81107	29
40	AXK4060	16	AS 4060	12	LS4060	GS 81108	WS 81108	40
45	AXK 4565	18	AS 4565	13	LS4565	GS 81109	WS 81109	50
50	AXK 5070	20	AS 5070	14	LS5070	GS 81110	WS 81110	55
55	AXK 5578	28	AS 5578	18	LS5578	GS81111	WS 81111	88
60	AXK 6085	33	AS 6085	22	LS 6085	GS 81112	WS 81112	97
65	AXK 6590	35	AS 6590	24	LS6590	GS 81113	WS 81113	115
70	AXK 7095	60	AS 7095	25	LS 7095	GS 81114	WS 81114	123
75	AXK 75100	61	AS 75100	27	LS 75100	GS 81115	WS 81115	142
80	AXK 80105	63	AS 80105	28	LS 80105	GS 81116	WS 81116	151
85	AXK 85110	67	AS 85100	29	LS 85110	GS 81117	WS 81117	159
90	AXK 90120	86	AS 90120	39	LS 90120	GS 81118	WS 81118	234
100	AXK 100135	104	AS 100135	50	LS100135	GS 81120	WS 81120	350
110	AXK 110145	122	AS 110145	55	LS 110145	GS 81122	WS 81122	385
120	AXK 120155	131	AS 120155	59	LS120155	GS 81124	WS 81124	415
130	AXK 130170	205	AS 130170	65	LS 130170	GS 81126	WS 81126	663
140	AXK 140180	219	AS 140180	79	LS 140180	GS 81128	WS 81128	749
150	AXK 150190	232	AS 150190	84	LS 150190	GS 81130	WS 81130	796
160	AXK 160200	246	AS 160200	89	LS 160200	GS 81132	WS 81132	842

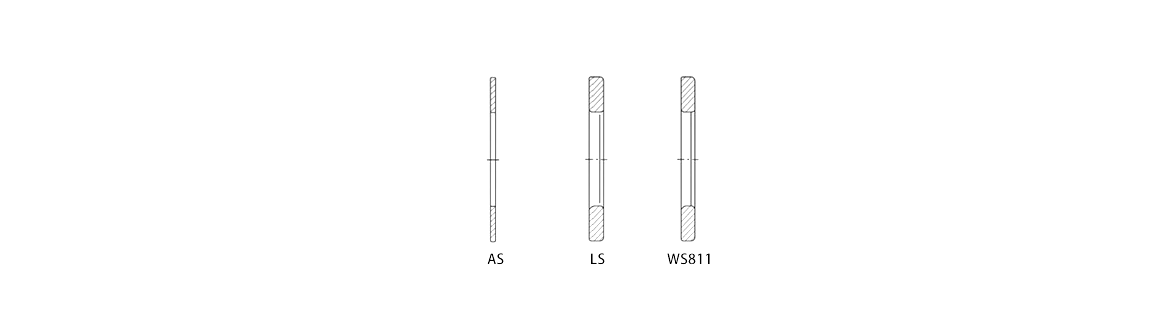

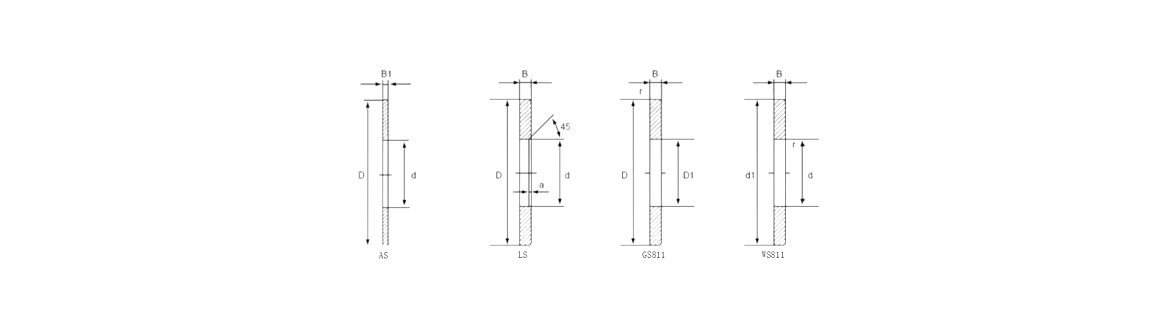

AS | LS | GS811 | WS811

Dimension								Track size		Basic Load Rating KN		Limiting Speed r/min
Dcl d	D1	Dc D	d1	Dw	B1	B	a r/min	Eb	Ea	C	CO	Limiting Speed r/min
4		14		2	1			5	13	4.4	8	21000
5		15		2	1			6	14	4.75	9.2	21000
6		19		2	1	2.75	0.3	7	18	6.8	15.5	19000
8		21		2	1	2.75	0.3	9	20	7.8	19.4	18000
10		24		2	1	2.75	0.3	12	23	9.2	25.5	17000
12		26		2	1	2.75	0.3	14	25	9.9	29	15000
15	16	28	28	2	1	2.75	0.3	17	27	11.3	36	13000
17	18	30	30	2	1	2.75	0.3	19	29	11.9	39.5	12000
20	21	35	35	2	1	2.75	0.3	22	34	13.1	46.5	10000
25	26	42	42	2	1	3	0.6	29	41	14.7	58	8500
30	32	47	47	2	1	3	0.6	34	46	16.3	70	7500
35	37	52	52	2	1	3.5	0.6	39	51	17.8	81	6500
40	42	60	60	3	1	3.5	0.6	45	58	28	114	6000
45	47	65	65	3	1	4	0.6	50	63	30	128	5000
50	52	70	70	3	1	4	0.6	55	68	32	143	4800
55	57	78	78	3	1	5	0.6	60	76	38	186	4300
60	62	85	85	3	1	4.75	1	65	83	44.5	234	4000
65	67	90	90	3	1	5.25	1	70	88	46.5	255	3700
70	72	95	95	4	1	5.25	1	74	93	54	255	3500
75	77	100	100	4	1	5.75	1	79	98	55	265	3300
80	82	105	105	4	1	5.75	1	84	103	56	280	3100
85	87	110	110	4	1	5.75	1	89	108	58	290	3000
90	92	120	120	4	1	6.5	1	94	118	73	405	2700
100	102	135	135	4	1	7	1	105	133	91	560	2500
110	112	145	145	4	1	7	1	115	143	97	620	2300
120	122	155	155	4	1	7	1	125	153	102	680	2100
130	132	170	170	5	1	9	1	136	167	133	840	1900
140	142	180	178	5	1	9.5	1	146	177	138	900	1800
150	152	190	188	5	1	9.5	1	156	187	143	960	1700
160	162	200	198	5	1	9.5	1	166	197	145	1020	1600

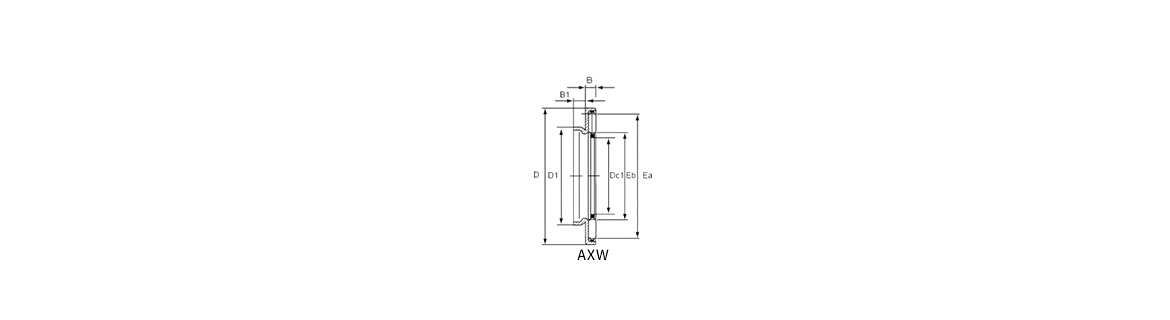

AXW

Shaft Diameter (mm)	Bearing Designation	Mass9	Dimension					Track size		Basic Load Rating		Limiting Speed r/min
			Dcl	D1	D	B	B1	Eb	Ea	C	Co
										KN
10	AXW10	8.3	10	14	27	3.2	3	12	23	9.2	25.5	16000
12	AXW12	9.1	12	16	29	3.2	3	14	25	9.9	29	14000
15	AXW15	10	10	15	21	3.2	3.5	17	27	11.3	36	13000
17	AXW17	11	17	23	33	3.2	3.5	19	29	11.9	39.5	12000
20	AXW20	14	20	26	38	3.2	3.5	22	34	13.1	46.5	10000
25	AXW25	20	25	32	45	3.2	4	29	41	14.7	58	8000
30	AXW30	22	30	37	50	3.2	4	34	46	16.3	70	7000
35	AXW35	27	35	42	55	3.2	4	39	51	17.8	81	6500
40	AXW40	39	40	47	63	4.2	4	45	58	28	114	5500
45	AXW45	43	45	52	68	4.2	4	50	63	30	128	5000
50	AXW50	49	50	58	73	4.2	4.5	55	68	32	143	4700

AS | LS | WS811

Bearing washer and bearing suitable for combination
AS	LS	WS811	HK	HK...RS	BK	NK NKS RNA49 RNA69	NKI NKIS NA49 NA69
AS1024	LS1024	一	HK1010,HK1012		BK1010,BK1012	NK7/10TN
一	-		HK1015		BK1015	NK7/12TN	一
AS1226	LS1226		HK1210		BK1210	NK9/12TN	NKI6/12TN
一	-					NK9/16TN	NKI6/16TN
AS1528	LS1528	WS81102	HK1512,HK1516	HK1514RS	BK1512,BK1516
	-		HK1522	-			一
AS1730	LS1730	WS81103	HK1712			NK15/16,NK15/20
AS2035	LS2035	WS81104	HK2012,HK2016	HK2018RS	BK2016	NK18/16,NK18/20
	-		HK2020		BK2020
	-		HK2030			一	一
AS2542	LS2542	WS81105	HK2512,HK2516	HK2518RS		NK24/16,NK24/20	NKI20/16
	-		HK2520,HK2526		BK2520,BK2526	NKS20	NKI20/20
一	-		HK2538		BK2538		一
AS3047	LS3047	WS81106	HK3012,HK3016	HK3018RS	BK3012,BK3016	NK28/20,NK28/30	NA4904
	-		HK3020,HK3026	-	BK3020,BK3026	NKS24	NA6904
	-		HK3038	-	BK3038	RNA4904,RNA6904	一
AS3552	LS3552	WS81107	HK3512,HK3516	HK3518RS		NK32/20,NK32/30	NKIS20,NA4905
	-		HK3520		BK3520	NKS28	NA6905
	-			-		RNA4905,RNA6905	NKI28/20,NKI28/30
AS4060	LS4060	WS81108	HK4012,HK4016	HK4018RS		NK37/20,NK37/30	NKIS25,NA4906
	-		HK4020		BK4020	NKS32	NA6906
一		一		-		RNA4906,RNA6906	NKI32/20
一	-	一					NK132/30
AS4565	LS4565	WS81109	HK4516,HK4520	HK4518RS	BK4520	NK42/20,NK42/30	NKIS30
				-		NKS37	NA49/32
						RNA49/30,RNA69/32	NA69/32
AS5070	LS5070	WS81110	HK5020,HK5025	HK5022RS		NKS43	NKIS35

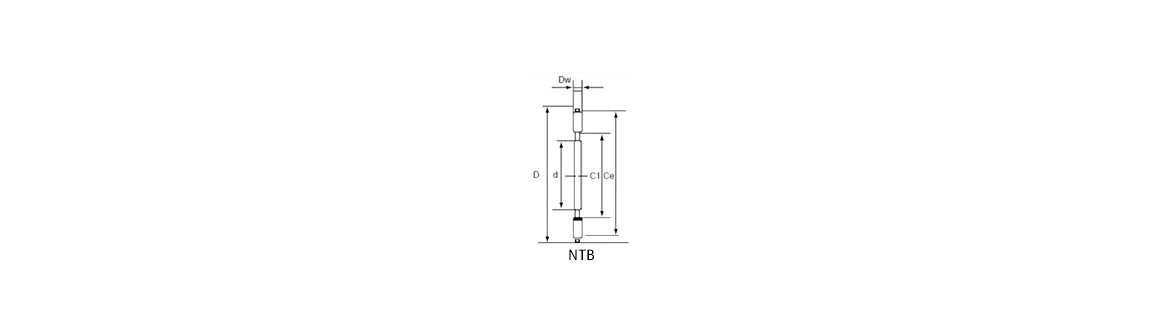

NTB

Shaft Diameter (mm)	Axial Needle RollerandCage Assemblies Code
Shaft Diameter (mm)	Axial Needle Roller and Cage Assemblies	Mass g	Thrust Sheet	Mass g	Shaft Ring	Seat Ring	Mass g
10	NTB 1024	3.3	AS 1024	2.9	WS1024	GS1024	8
12	NTB 1226	3.8	AS 1226	3.2	WS1226	GS1226	8.9
15	NTB 1528	4.1	AS 1528	3.4	WS1528	GS1528	9.3
16	NTB 1629	4.3	AS 1629	3.6	WS1629	GS1629	9.8
17	NTB 1730	4.5	AS 1730	3.7	WS1730	GS1730	10.2
18	NTB 1831	4.7	AS 1831	3.9	WS1831	GS1831	10.7
20	NTB 2035	6.1	AS 2035	5	WS2035	GS2035	13.8
25	NTB 2542	8.2	AS 2542	6.9	WS2542	GS2542	21
30	NTB 3047	9.4	AS 3047	7.9	WS3047	GS3047	24
35	NTB 3552	10.6	AS 3552	8.9	WS3552	GS3552	31.5
40	NTB4060	22	AS 4060	12.1	WS4060	GS4060	42.5
45	NTB 4565	24.5	AS 4565	13.3	WS4565	GS4565	53.5
50	NTB 5070	26.5	AS 5070	14.5	WS5070	GS5070	58.5
55	NTB5578	33.5	AS5578	18.5	WS5578	GS5578	93
60	NTB 6085	38.5	AS 6085	22	WS6085	GS6085	105
65	NTB 6590	41.5	AS 6590	23.5	WS6590	GS6590	124
70	NTB 7095	61	AS 7095	25	WS7095	GS7095	132
75	NTB 75100	65	AS 75100	26.5	WS75100	GS75100	153
80	NTB80105	68.5	AS 80105	28	WS80105	GS80105	162
85	NTB85110	72	AS 85110	29.5	WS85110	GS85110	170
90	NTB 90120	92	AS 90120	38	WS90120	GS90120	250
100	NTB 100135	119	AS 100135	50	WS110135	GS100135	350
110	NTB 110145	129	AS 110145		WS110145	GS110145	380
120	NTB 120155	139	AS 120155		WS120155	GS120155	410
130	NTB 130170	225	AS 130170		WS130170	GS130170	660

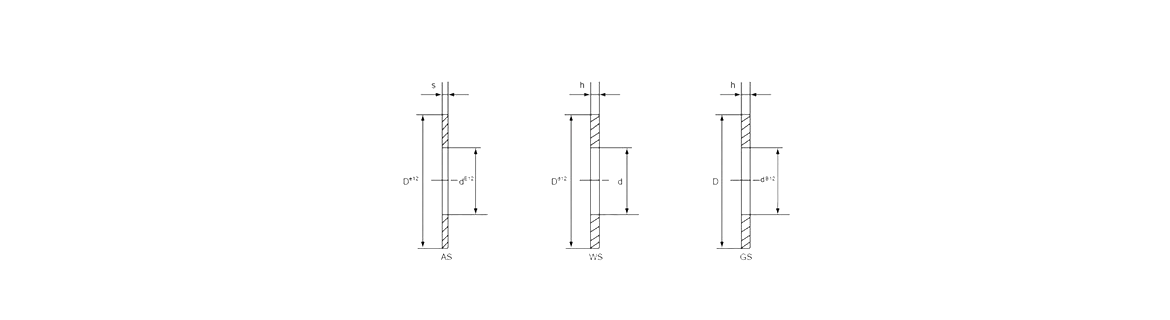

AS | WS | GS

Dimension								Basic Load Rating KN		Limiting Speed r/min
d	D	DW	s	h	Rs (1)	Ci	Ce	C kgf	Co kgf	Limiting Speed r/min
10	24	2	1	2.75	0.3	14	22	800	2440	15000
12	26	2	1	2.75	0.3	16	24	850	2750	13000
15	28	2	1	2.75	0.3	18	26	900	3050	12000
16	29	2	1	2.75	0.3	19	27	920	3200	11000
17	30	2	1	2.75	0.3	20	28	950	3360	11000
18	31	2	1	2.75	0.3	21	29	970	3510	10000
20	35	2	1	2.75	0.3	23	33	1200	4740	9000
25	42	2	1	3	0.6	29	40	1470	6600	7500
30	47	2	1	3	0.6	34	45	1570	7470	6500
35	52	2	1	3.5	0.6	39	50	1670	8350	5500
40	60	3	1	3.5	0.6	45	57	2470	11000	5000
45	65	3	1	4	0.6	50	62	2640	12400	4500
50	70	3	1	4	0.6	55	67	2810	13700	4000
55	78	3	1	5	0.6	61	75	3300	17500	4000
60	85	3	1	4.75	1	66	82	3900	22300	3500
65	90	3	1	5.25	1	71	87	4090	24100	3000
70	95	4	1	5.25	1	75	91	4830	24900	3000
75	100	4	1	5.75	1	80	96	4930	26100	3000
80	105	4	1	5.75	1	85	101	5050	27200	2500
85	110	4	1	5.75	1	90	106	5130	28400	2500
90	120	4	1	6.5	1	96	116	6570	40100	2500
100	135	4	1	7	1	107	131	8190	55200	2000
110	145	4		7	1	117	141	8480	59000	2000
120	155	4		7	1	127	151	8960	64700	1800
130	170	5		9	1	137	165	12300	85500	1700

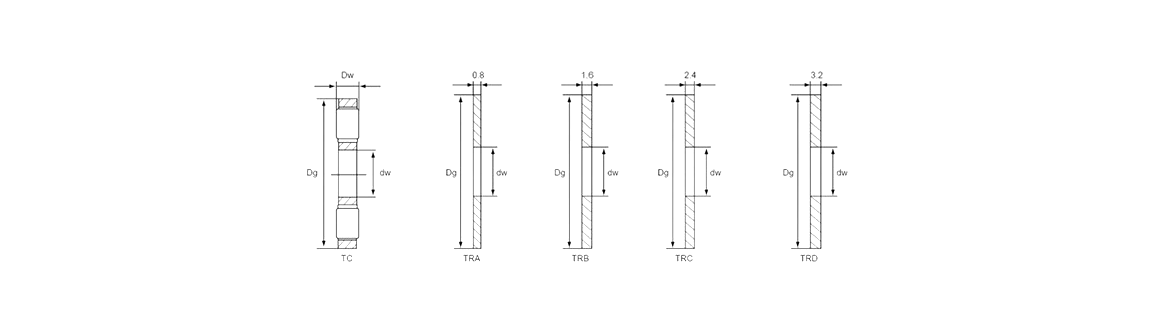

TS | TRA | TRB | TRC | TRD

Shaft Diameter (mm)	Bearing Designation	Boundary Dimensions						Basic Load Rating KN		Limiting Speed r/min	TRA TRB TRC TRD
		dw/d		Dg/D		DW		Dynamic	Static	Oil
		inch	mm	inch	mm	inch	mm	N		rpm
1/4	TC411	0.250	6.35	0.687	17.45	0.0781	1.984	1370	3000	16000	411
5/16	TC512	0.312	7.49	0.750	19.05	0.0781	1.984	1560	3650	15000	512
3/8	TC613	0.375	9.52	0.812	20.62	0.0781	1.984	1620	4000	15000	613
1/2	TC815	0.500	12.70	0.937	23.80	0.0781	1.984	1920	5300	13000	815
5/8	TC1018	0.625	15.88	1.125	28.58	0.0781	1.984	2170	6600	11000	1018
3/4	TC1220	0.750	19.05	1.250	31.75	0.0781	1.984	2410	8000	9500	1220
7/8	TC1423	0.875	22.22	1.437	36.50	0.0781	1.984	2900	10500	8500	1423
7/8	TC1427	0.875	22.22	1.687	42.85	0.0781	1.984	4400	18600	7500	1427
1	TC1525	1.000	25.40	1.562	39.67	0.0781	1.984	3150	12100	7500	1525
11/8	TC1828	1.125	28.58	1.750	44.45	0.0781	1.984	3850	16300	6500	1828
13/16	TC1931	1.188	30.16	1.937	49.20	0.0781	1.984	4500	20500	6000	1931
11/4	TC2013	1.250	31.75	1.937	49.20	0.0781	1.984	4500	20500	6000	2013
13/8	TC2233	1.375	34.92	2.062	52.37	0.0781	1.984	4600	21600	5500	2233
11/2	TC2435	1.500	38.10	2.187	55.55	0.0781	1.984	4850	23700	5000	2435
13/4	TC2840	1.750	44.45	2.500	63.50	0.0781	1.984	5600	30000	4500	2840
2	TC3244	2.000	50.80	2.750	69.85	0.0781	1.984	5800	32500	4000	3244
21/4	TC3648	2.250	57.15	3.000	76.20	0.0781	1.984	6000	35000	3600	3648
21/2	TC4052	2.500	63.50	3.250	82.55	0.0781	1.984	6200	37500	3300	4052
3	TC4860	3.000	76.20	3.750	95.25	0.0781	1.984	6600	42500	2800	4860
31/4	TC5266	3.250	82.55	4.125	104.78	0.1250	3.175	10900	61000	2600	5266
41/8	TC6681	4.125	104.78	6.062	128.57	0.1250	3.175	14200	92000	2100	6681

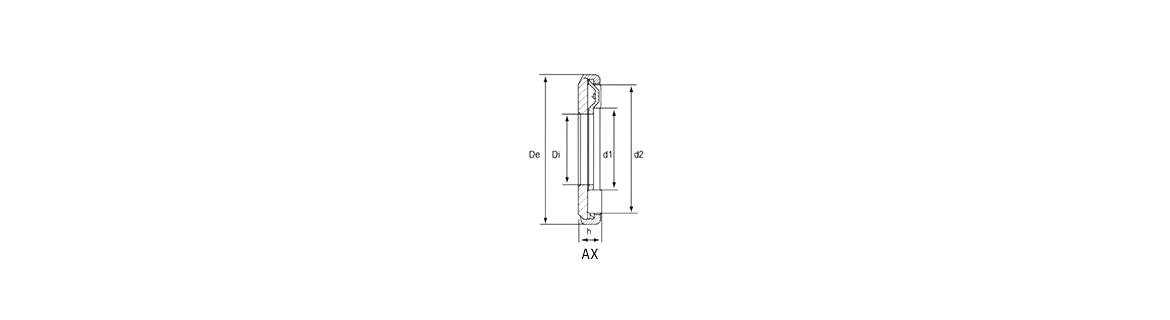

Shaft Diameter (mm)	Bearing Designation		Mass Approx	Boundary Dimensions					Basic Load Rating		Limiting Speed
	AX Baureihe dunn	AX Baureihe dick	Mass Approx	Di	De	h	d1	d2	Dynamic	Static	Grenzdrehzahl min-1
	AX Baureihe dunn	AX Baureihe dick	g	mm					N		Grenzdrehzahl min-1
5	AX513		1.3	5	13	2.3	6.3	10.9	3000	5700	25000
5		AX 3.5513	2.3	5	13	3.5	6.3	10.9	3000	5700	25000
6	AX614		1.4	6	14	2.3	7.3	11.9	3150	6350	22000
6		AX 3.5614	2.4	6	14	3.5	7.3	11.9	3150	6350	22000
7	AX715		1.7	7	15	2.3	8.3	12.9	3550	7600	22000
7		AX 3.5715	2.9	7	15	3.5	8.3	12.9	3550	7600	22000
8	AX816		1.7	8	16	2.3	9.3	13.9	3700	8300	22000
8		AX 3.5816	3	8	16	3.5	9.3	13.9	3700	8300	22000
9	AX917		2.1	9	17	2.3	10.3	14.9	4050	9500	19000
9		AX 3.5917	3.5	9	17	3.5	10.3	14.9	4050	9500	19000
10	AX 1022		4	10	22	2.8	12	18.6	5000	10900	15500
10		AX41022	6.5	10	22	4	12	18.6	5000	10900	15500
12	AX 1226		6	12	26	2.8	15	22.6	6900	17700	13000
12		AX41226	10	12	26	4	15	22.6	6900	17700	13000
13	AX 1326		6	13	26	2.8	15	22.6	6900	17700	13000
13		AX41326	9.8	13	26	4	15	22.6	6900	17700	11300
15	AX 1528		6.9	15	28	2.8	17	24.6	7400	20000	11500
15		AX41528	9	15	28	4	17	24.6	7400	20000	11500
17	AX1730		7.6	17	30	2.8	19	26.6	7800	22000	10500
17		AX41730	10	17	30	4	19	26.6	7800	22000	10500
19	AX1932		8.6	19	32	2.8	21	28.6	8000	23300	10000
19		AX41932	13	19	32	4	21	28.6	8000	23300	10000
20	AX 2035		10.2	20	35	2.8	22	31.6	11800	39000	9000
20		AX52035	18	20	35	5	22	31.6	11800	39000	9000
25	AX 2542		11.5	25	42	2.8	27.7	37.4	13300	49000	7500
25		AX52542	25	25	42	5	27.7	37.4	13300	49000	7500
27	AX2744		12.1	27	44	2.8	30	39.5	13700	52000	7200
30	AX 3047		13.7	30	47	2.8	32.7	42.4	14500	57000	6500
30		AX53047	29	30	47	5	32.7	42.4	14500	57000	6500
35	AX 3552		18.5	35	52	2.8	37.2	49	18900	84000	5500
		AX53552	35	35	52	5	37.2	49	18900	84000	5500
	AX 3553		19.3	35	53	2.8	37.2	49	18900	84000	5500
		AX53553	36	35	53	5	37.2	49	18900	84000	5500
40	AX 4060		23.9	40	60	2.8	43	54.9	20400	96000	5000
40		AX54060	45	40	60	5	43	54.9	20400	96000	5000
45	AX 4565		24.7	45	65	2.8	48	59.9	21800	109000	4500
45		AX54565	50	45	65	5	48	59.9	21800	109000	4500

Last：no more!

Next：811,812 | K811,K812 | 893, 894

PRODUCTS
